Osg HSS Spiral Flute Tap Ex-Sft M10X1.5 Oh2 Edp: 11621

Specifications：M10X1.5 OH2

Paihao:M10X1.5 OH

Keywords：Osg Tap,Spiral Flute Tap,Ex-Sft Tap,M10X1.5,M10 Oh2 Tap,M10 Tap

EX-SUS-SET : High speed steel with cobalt machine tap, steel, copper, iron and aluminum special

Inquiry

OSG Spiral Flute Tap EX-SFT M10X1.5 OH2 EDP:11621

Features

Description	Value
Identifying order number	11621
Company code	OSG
Standard number of properties layout	DIN4000-80
Tool style code	1
Thread form type	M
Thread diameter	10 mm
Thread designation	M10x1.5-OH3
Thread pitch	1.5 mm
Thread tolerance class	OH3
Gate diameter	8.2 mm
Drive size	5.5 mm
Thread cutting part length	18 mm
Overall length	75 mm
Tap chamfer length	3.75 mm
Shank diameter, upper limit	0 mm
Shank diameter, lower limit	-0.04 mm
Shank length	34 mm
Flute count	3
Flute helix hand	R - Hand of helix right
Flute helix angle	35 Degree
Cutting direction	R - Right
Tap type identifier	1 - Machine tap
Plug style	C - Kappa r 15°
Standard designation of the grade, main application	HSS-E
Coolant entry style code	0 - Without coolant entry
Coolant exit style code	0 - Without coolant exit
Body material code	S - Solid steel
Data chip provision	0 - Without data chip
Overhang length	51 mm

Tap Brand	OSG (Japan)
Tap Model	EX-SUS
Tap Name	Tap (Oxidized)
Tap Type	Spiral / Apex
Tap Material	HSS-E (High Speed Steel with Cobalt)
Usage Scenario	CNC/Tapping Machine
Processing range	Carbon steel stainless steel
EX-SUS-SET	High speed steel with cobalt machine tap, steel, copper, iron and aluminum special
Type	Spiral
Performance	Upper chip evacuation, blind hole
Advantages	Strong cutting ability, wide range of applications
Characteristics	Spiral angle groove, no cutting blockage
Usage	Cutting in continuous roll, suitable for cutting high toughness materials
Product Name	Oxidized Black Spiral Tap
Material	HSS-E
Model	Various
Material	Medium carbon steel with tensile strength below 750N/MM2, copper aluminum, magnesium alloy, etc.
Suitable machines	CNC machining centers, hand tapping machines, tapping machines, precision engraving machines and other high-speed CNC milling machines.

Type1	Type2
Through-hole with lower slot in the apex	Blind tapped holes
Through-hole tapping possible	Blind Tapping
Smooth chip removal, no residue	Tilting angle groove
Easy to eat into the bottom hole	No chip clogging
Good cutting effect	High fracture damage resistance

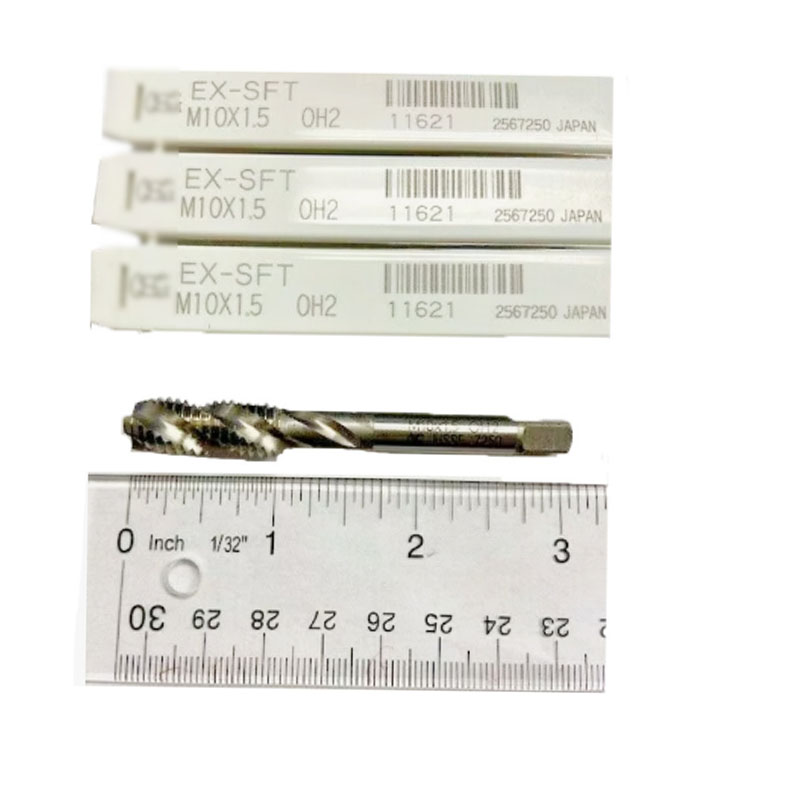

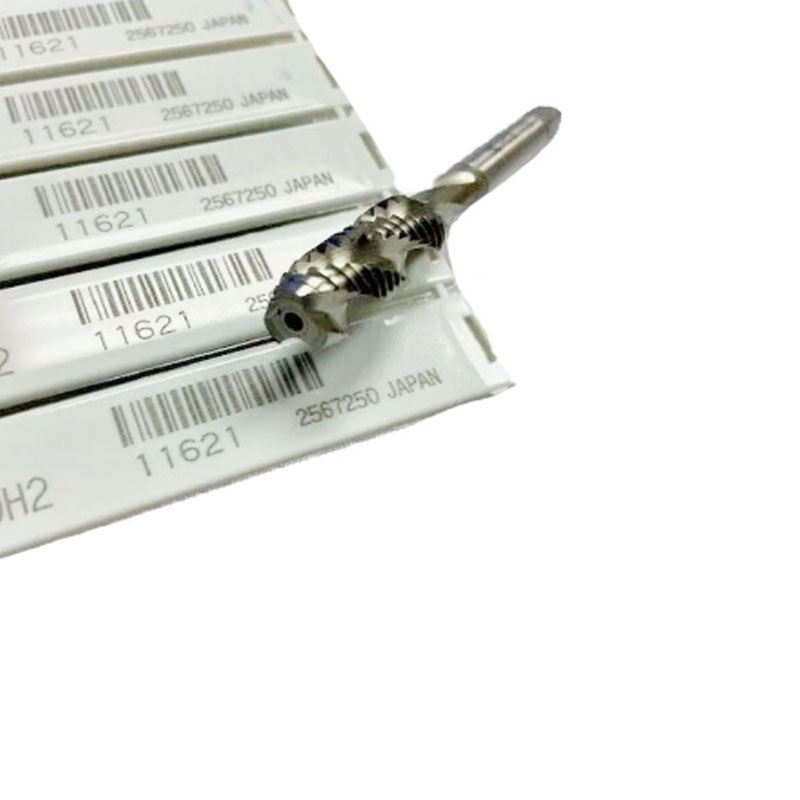

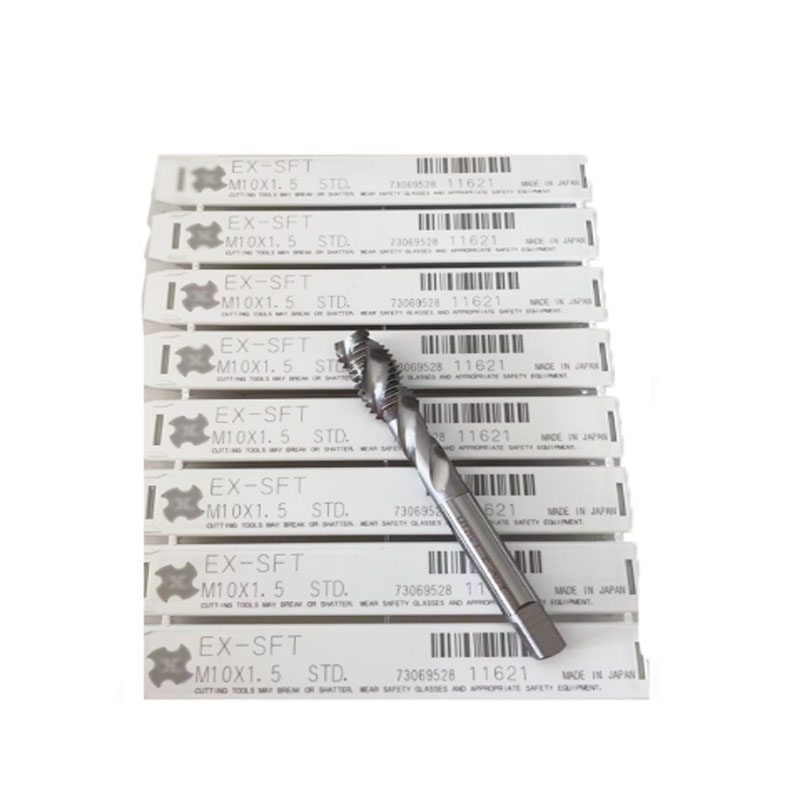

Detailed Photo
