Kennametals Lt22nr4API502 Kc5025 Carbide Laydown Threading Indexable Insert

Specifications:LT22NR4API502 KC5025

Paihao:KC5025

Keywords:Kennametal Inserts,Lt22nr4API502 Kc5025,Threading Inserts,Kennametal Thread Inserts,Indexable Insert,Carbide Inserts,Kc5025 Inserts

KC5025 Composition: An advanced PVDAlTiN coating material, the matrix is a ductile, ultra-fine grain non-alloying substance. Application: Used for a variety of steel materials, stainless steel, superalloy, titanium, iron, and non-ferrous metal materials for general mechanical processing. The cutting speed can be from low to medium speed, and high feed intermittent cutting can be performed.

Inquiry
KENNAMETALS LT22NR4API502 KC5025 Carbide Laydown Threading Indexable Insert
Product Description

Features
KC5025 Composition:
An advanced PVDAlTiN coating material, the matrix is a ductile, ultra-fine grain non-alloying substance.

Application: Used for a variety of steel materials, stainless steel, superalloy, titanium, iron, and non-ferrous metal materials for general mechanical processing. The cutting speed can be from low to medium speed, and high feed intermittent cutting can be performed.

Specifications Details

DescriptionValue
Technical product number1744003
Identifying order numberLT22NR4API502 KC5025
Company codeKH - Kennametals
Standard number of properties layoutDIN4000-77
Tool style code8
Profile form8
Threads per inch minimum4
Profile distance X3.1 mm
Profile distance Y2.1 mm
Chip breaker face count0 - Without chip breaker
Insert handR - Right
Thread typeI - Internal thread
Flute count3
Tooth count1
Thread profile typeV - Full profile
Insert length22 mm
Inscribed circle diameter12.7 mm
Insert thickness total4.78 mm
Insert mounting style code2 - With cylindrical bore
Fixing hole diameter4.88 mm
Insert thickness4.78 mm
Grade manufacturer's designationKC5025
Detailed Photos

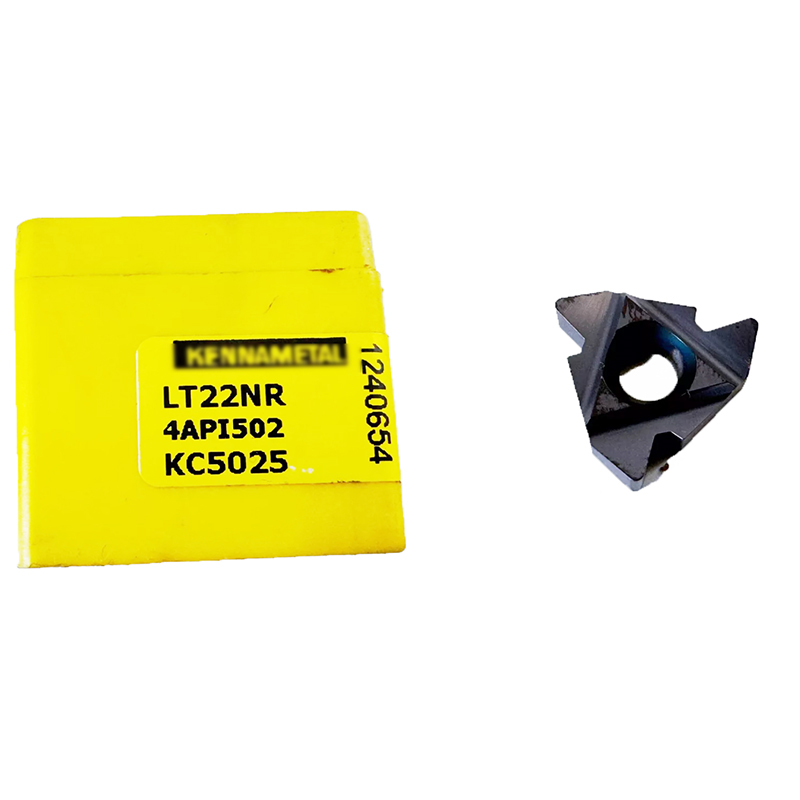

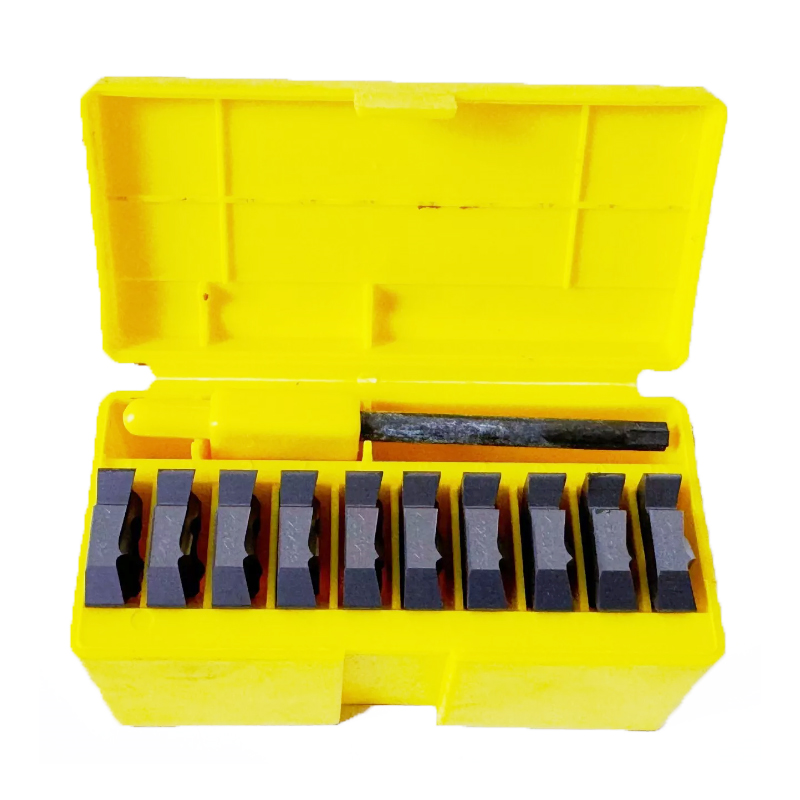

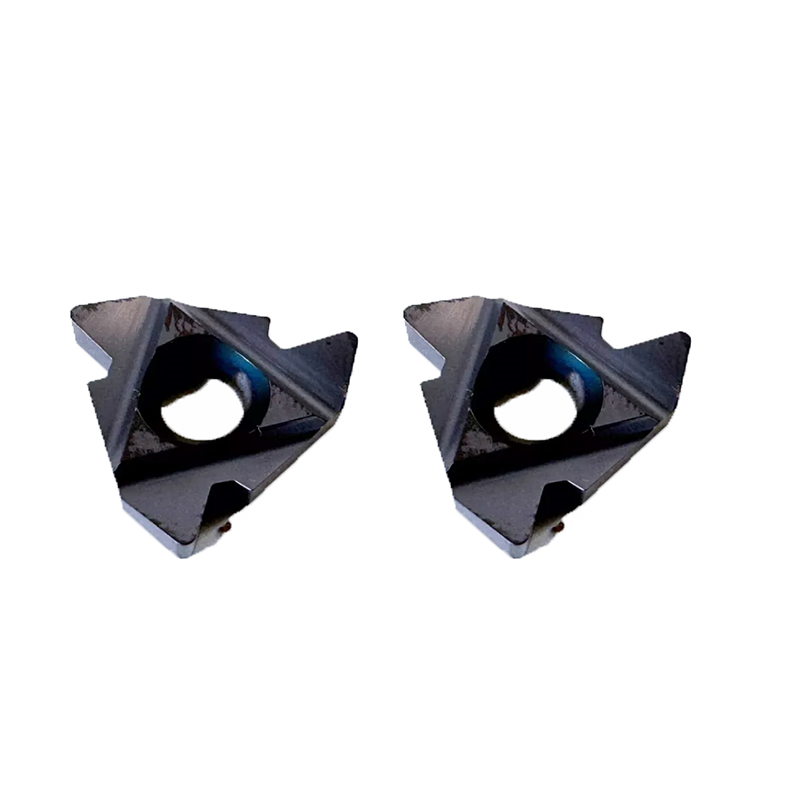

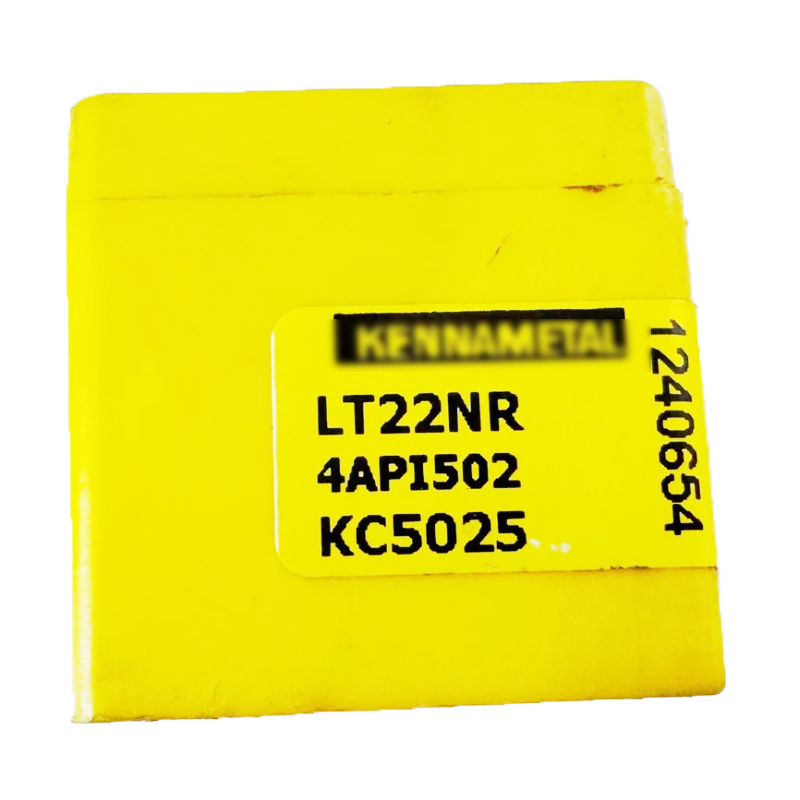

Detailed Photo


Company Profile

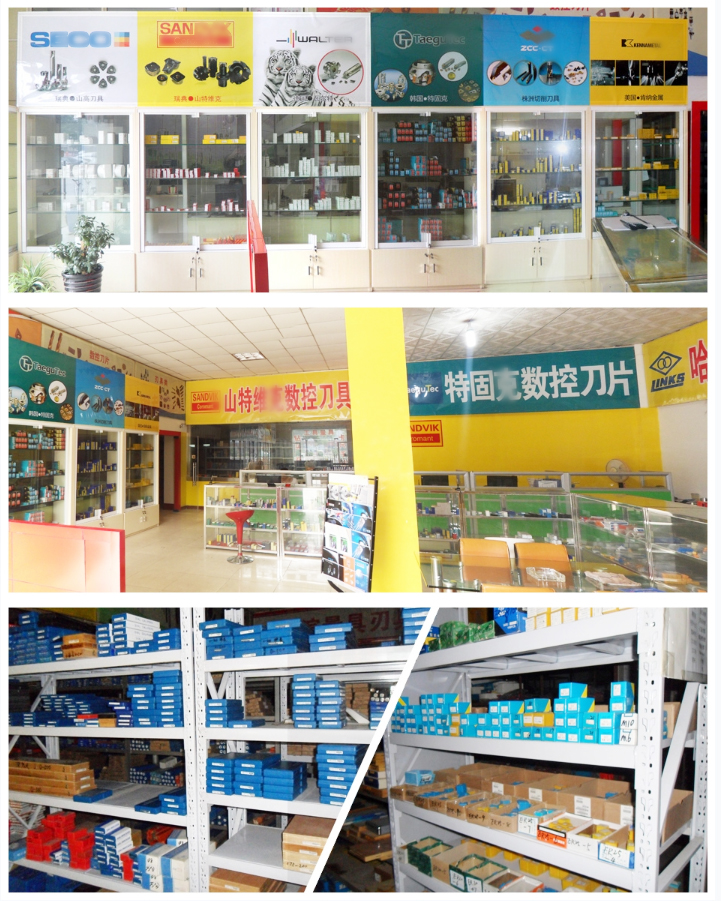

Company Profile
