Hard Metal Carbide Steel CNC Machine Cutting Inserts Dnmg150408-HS PC9030

Specifications:Dnmg150408-HS PC9030

Paihao:PC9030

Keywords:CNC Machine Inserts,PC9030 Inserts,Cutting Inserts,Hard Metal inserts,Carbide Steel inserts,Dnmg150408 inserts,HS PC9030 inserts

Application: Commonly used for turning operations such as external cylindrical turning, facing, contour turning, and other processes on materials like carbon steel, alloy steel, and cast steel.

Inquiry
Hard Metal Carbide Steel CNC Machine Cutting Inserts Dnmg150408-HS PC9030
Product Description

Specifications Details
PC9030
M30-M40
 - Stainless steel semi-finishing, roughing and heavy intermittent machining
 - TiAIN coating and ultra-fine particle matrix
 - Chipping and fusion resistant, stable machining

DescriptionValue
Technical product number1-02-015851
Identifying order numberDNMG150408-HS PC9030
Company codeKOR - Korloy
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle55 Degree
Clearance angle major0 Degree
Cutting edge length15.5 mm
Inscribed circle diameter12.7 mm
Insert thickness4.76 mm
Corner radius0.8 mm
Weight of item0.0115 kg
Chip breaker face count2 - With chip breaker on both sides
Chip breaker manufacturers designationHS
Insert handN - Neutral
Tolerance class insertM
Insert thickness total4.76 mm
Insert mounting style code2 - With cylindrical bore
Fixing hole diameter5.16 mm
Standard designation of the grade, main applicationCarbide
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationPC9030
CoatingCoated
ISO property0
Standard designationDNMG150408
Standard designation ANSIDNMG432
Main Products
Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

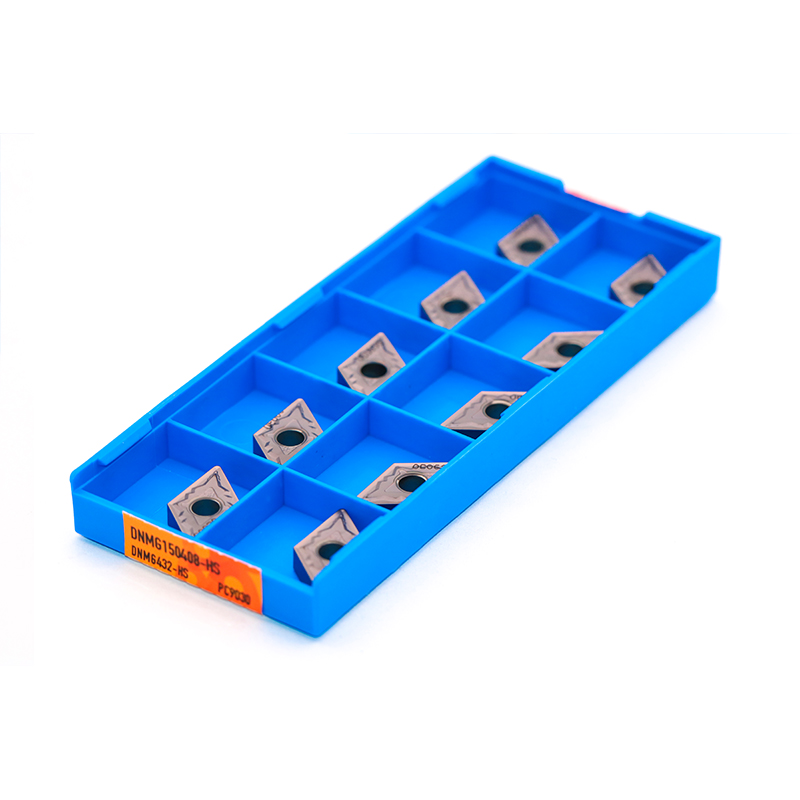

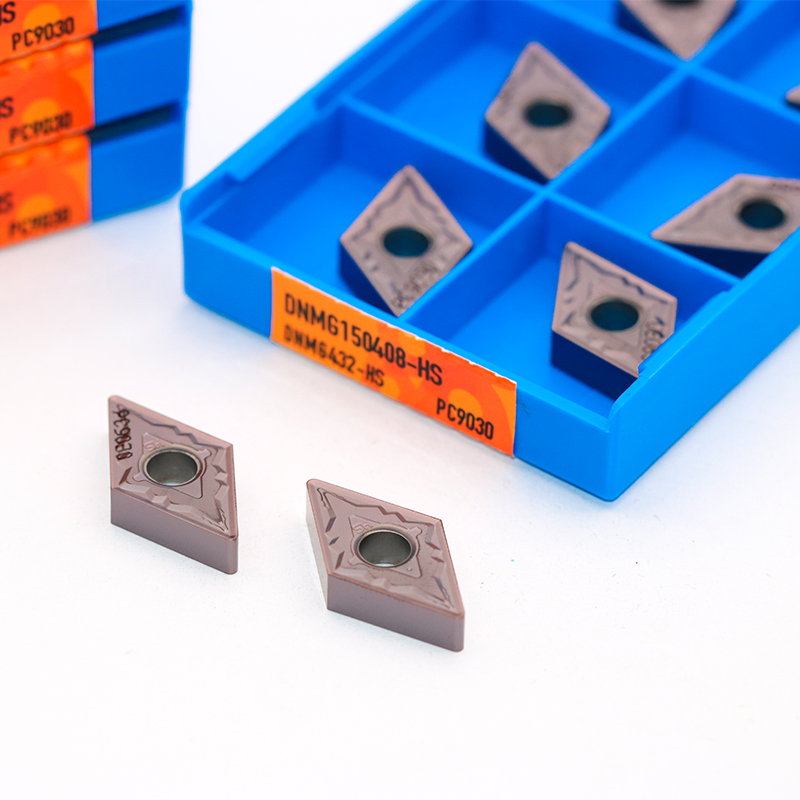

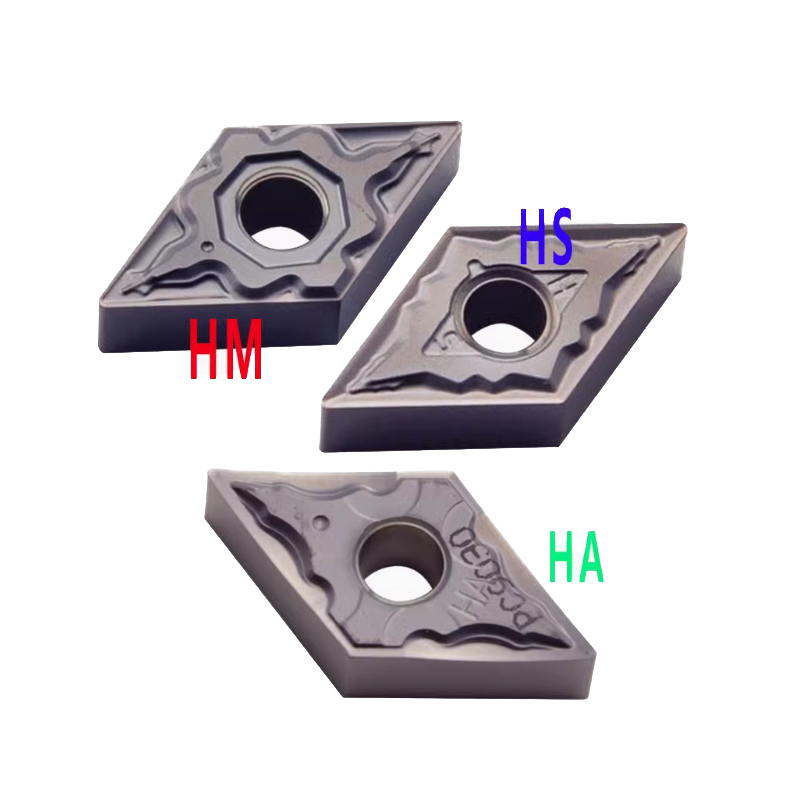

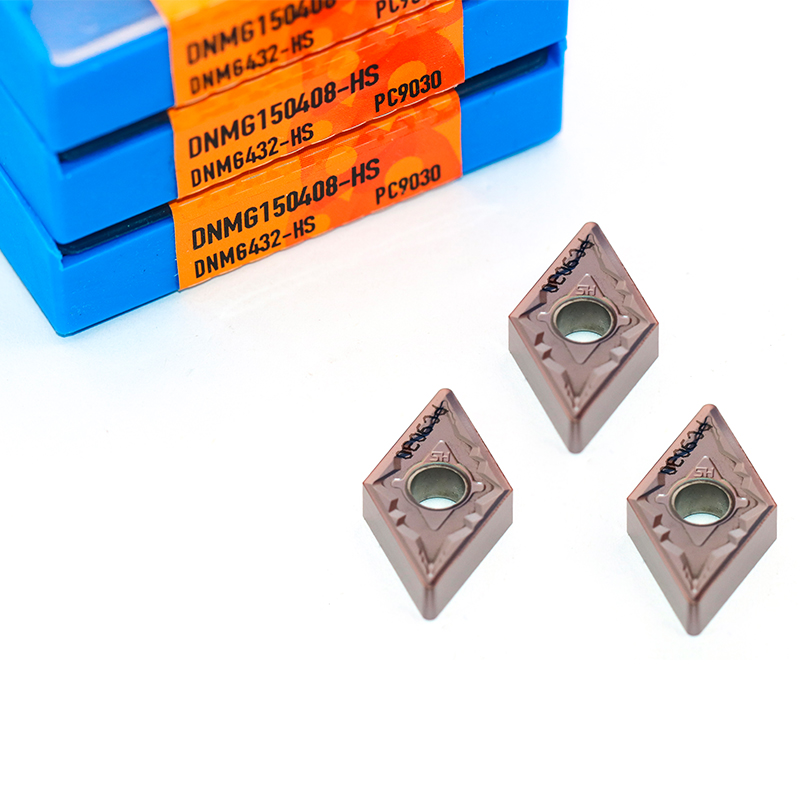

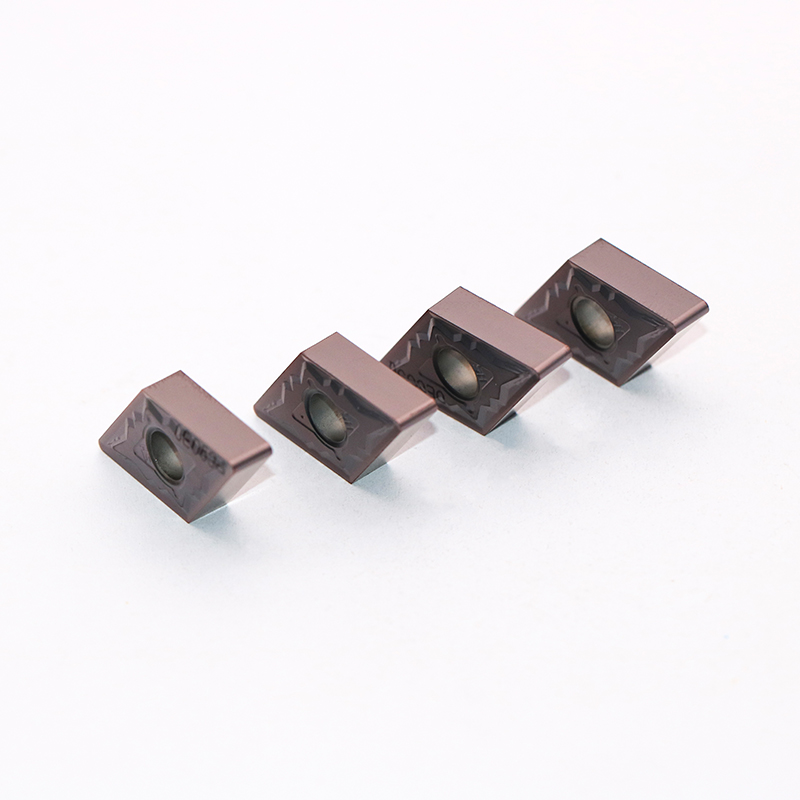

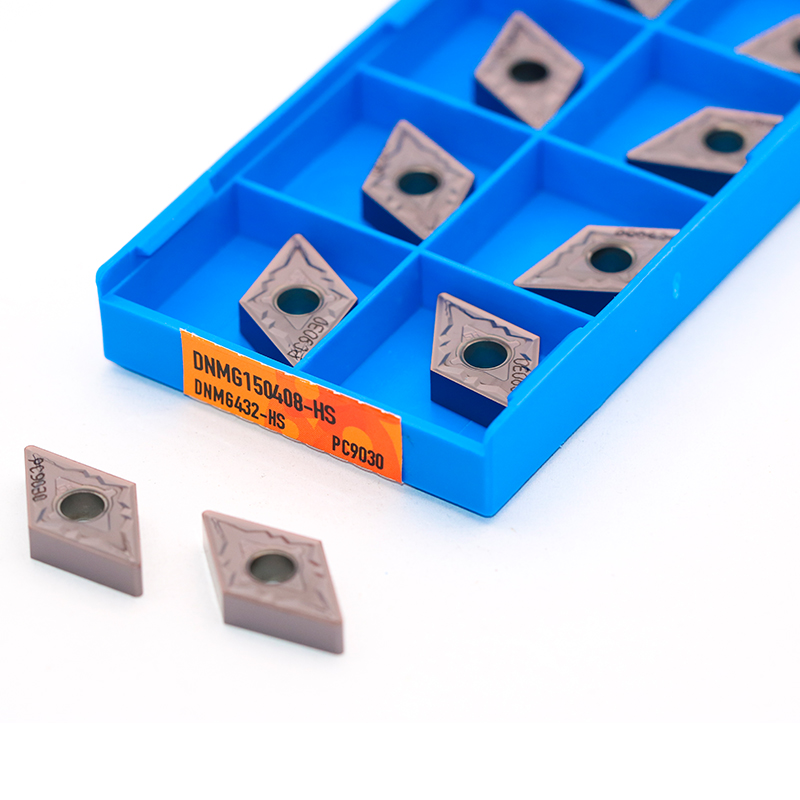

Detailed Photos

Detailed Photo

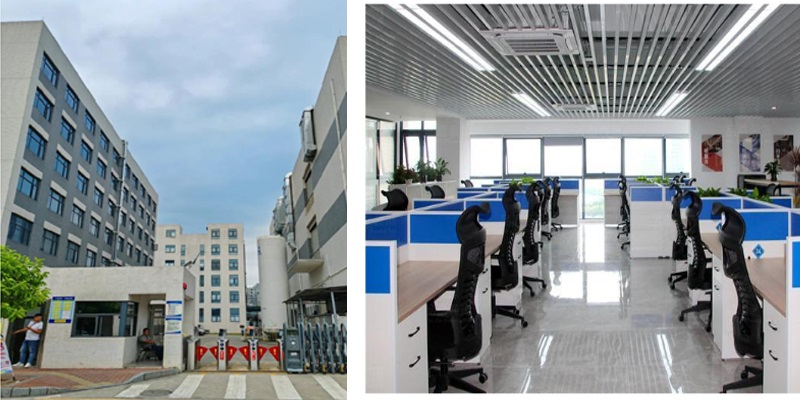

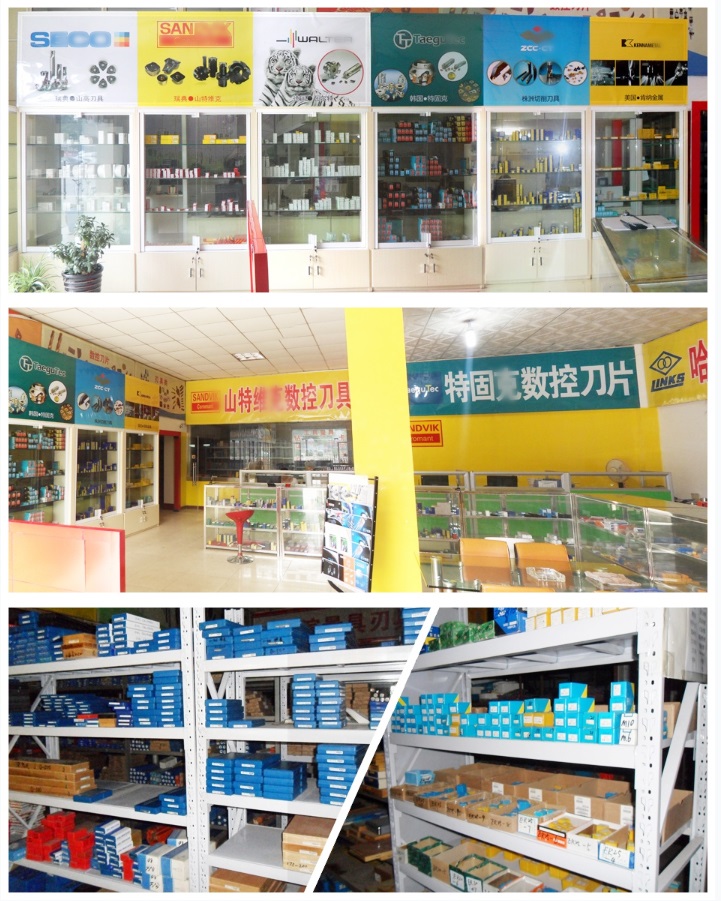

Company Profile
Company Profile
   Jinan Terry CNC Tool Co.,Ltd, which is near the world's fourth largest port, Qingdao Port. three hours drive from the capital of China, BeiJing. Located in the famous industrial city Jinan, the capital of Shandong Province.
   Established in 2011,after 13 years of development,we have become an outstanding comprehensive agent for imported CNC cutting tools. We have more than 5 engineers, 50 staff and 10 excellent salesmen and related service persons. We sell all kinds of CNC tools,such as carbide inserts,tool holders,end mills,taps,drills,collect chucks,etc.
    We have high quality products and affordable prices. We also cooperate with multiple well-known suppliers.We have a large amount of stocks and fast delivery speed.And we promise our products are 100% original genuine products. The quality of products, management system, sales volume and brand awareness are all in the front ranks.We are trying our best to provide the world manufacturing with as more as excellent cutting tools.
   Our company adhere to the business philosophy:"Honesty, trustworthiness, new, fast, excellent and inexpensive" and the service tenet of "Buy the rest assured that with reality, "supply the imported world famous CNC tools for mechanical processing enterprises.
Jinan Terry CNC Tool Co.,Ltd upholding the" customer first service supreme" management ideas, sincerely welcome the people from all over the world to visit and cooperate

Packaging & Shipping

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tapedownLoadImg24Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.downLoadImg26

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
 T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week.downLoadImg25
