Ccgt09t308-Ak H01 Carbide Turning Inserts CNC Lathe Milling Tool

Specifications:ccgt09t308 AK H01

Paihao:H01

Keywords:CNC Lathe,Carbide Inserts,Milling Tool,CNC Tool,Ccgt09t308-Ak,Lathe Tool,Ccgt Inserts,Mill Inserts

Application: Primarily designed for high-speed finishing operations. Target Materials: Aluminum Alloys, Brass, Copper, Plastics, and other non-ferrous materials. Avoid use on ferrous materials (steel, stainless steel, cast iron). Operation Type: Finishing and light semi-finishing. Excels at achieving excellent surface finish and dimensional accuracy.

Inquiry
CCGT09T308-AK H01 Carbide Turning inserts CNC Lathe Milling Tool
Product Description

Specifications Details

Application: Primarily designed for high-speed finishing operations.


Target Materials: Aluminum Alloys, Brass, Copper, Plastics, and other non-ferrous materials. Avoid use on ferrous materials (steel, stainless steel, cast iron).


Operation Type: Finishing and light semi-finishing. Excels at achieving excellent surface finish and dimensional accuracy.


DescriptionValue
Technical product number1-03-000341
Identifying order numberCCGT09T308-AK H01
Company codeKOR - Korloy
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle80 Degree
Clearance angle major7 Degree
Cutting edge length9.7 mm
Inscribed circle diameter9.525 mm
Insert thickness3.97 mm
Corner radius0.8 mm
Weight of item0.0029 kg
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationAK
Insert handN - Neutral
Tolerance class insertG
Insert thickness total3.97 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40° to 60°
Fixing hole diameter4.4 mm
Standard designation of the grade, main applicationCarbide
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationH01
Coatingohne
ISO property0
Standard designationCCGT09T308
Standard designation ANSICCGT32.52

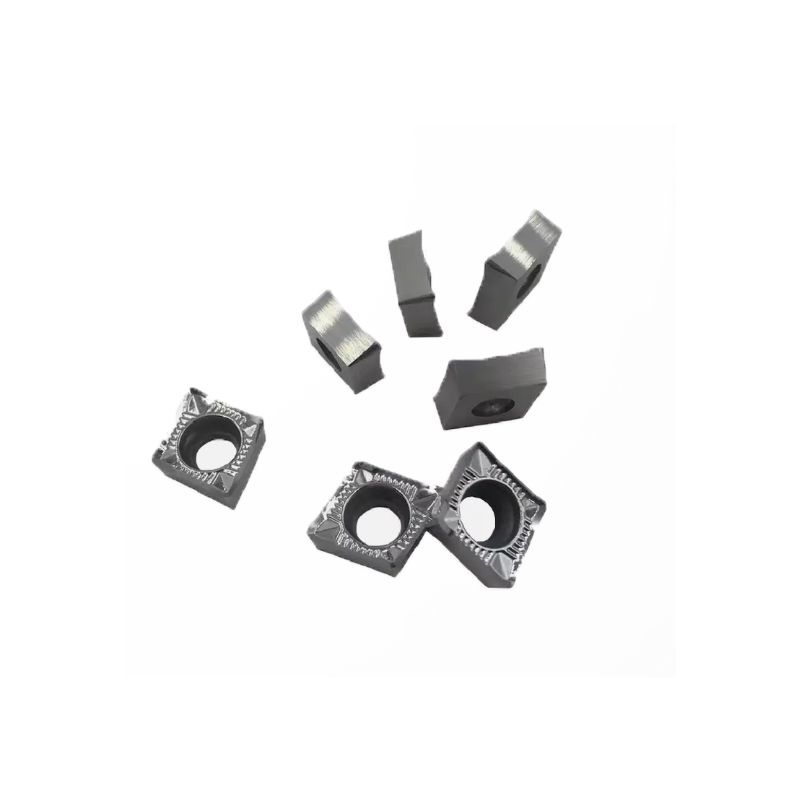

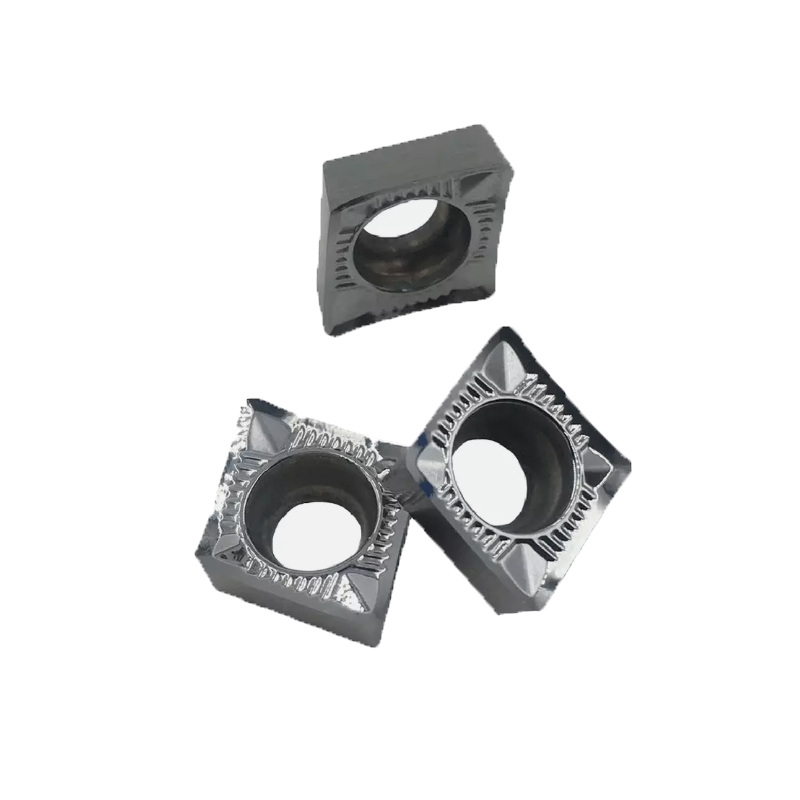

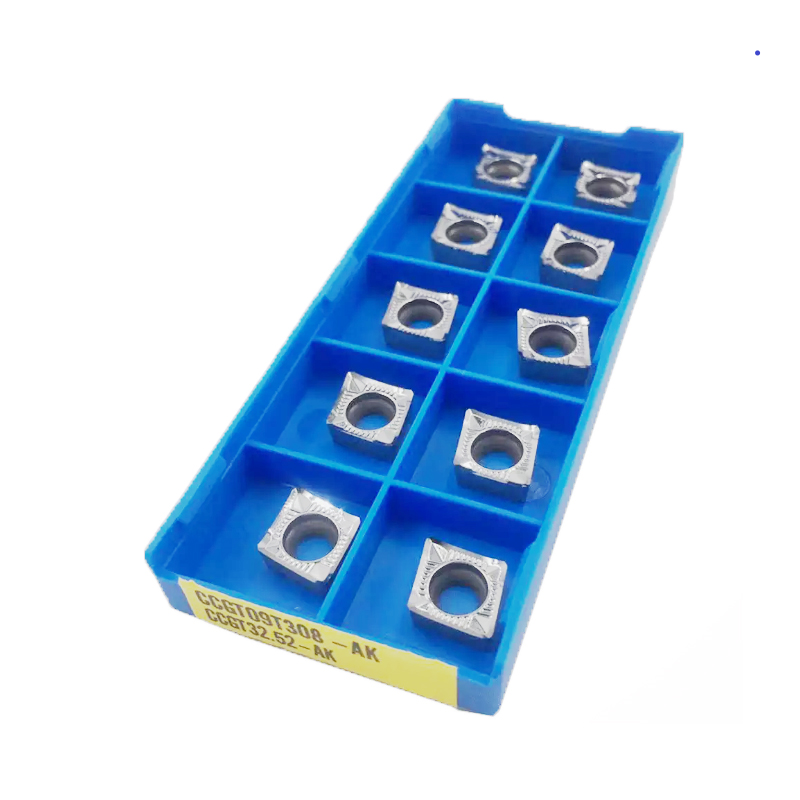

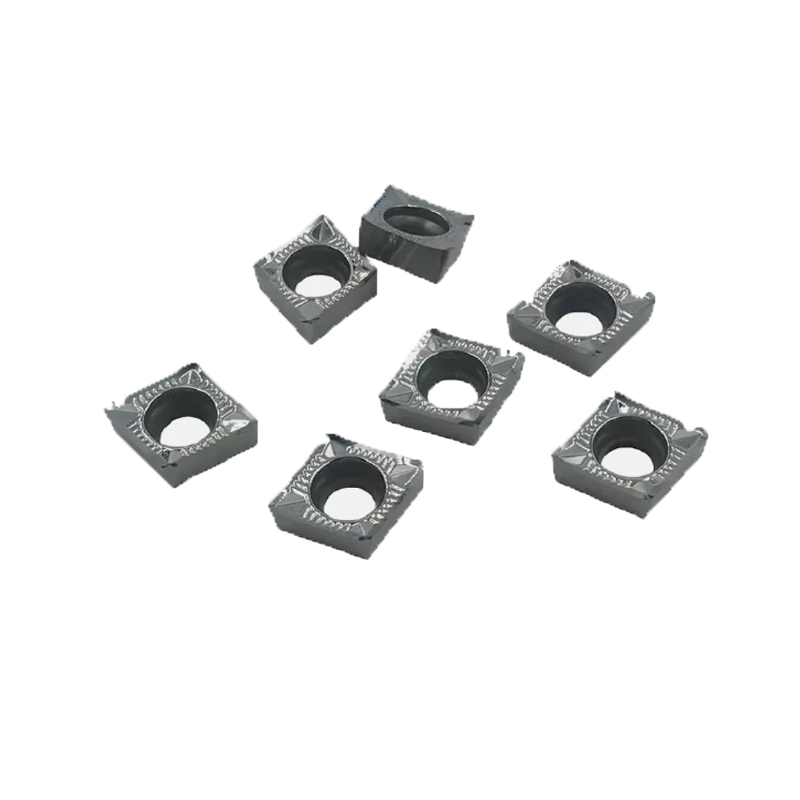

Detailed Photos

Detailed Photo

downLoadImg 31

Main Products:

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

Main Famous brand:downLoadImg 36

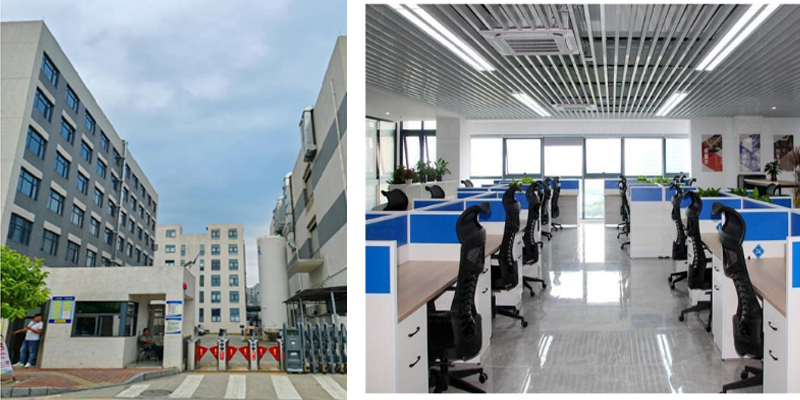

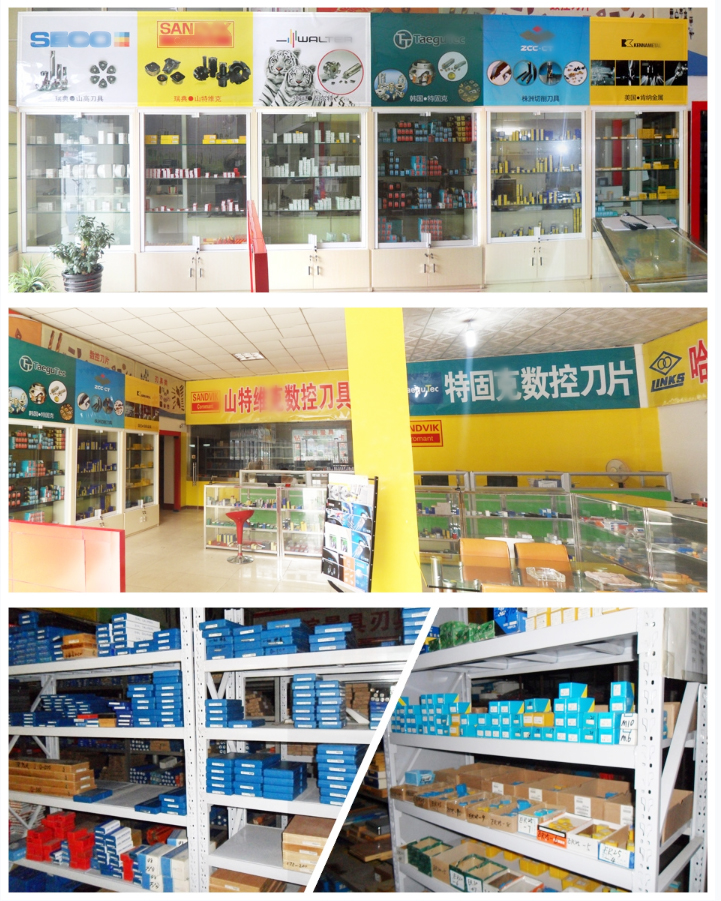

Company Profile
