Ccgt060208-Ak H01 Ccgt21.52 Ak Carbide Inserts for Aluminum Ccgt06

Specifications:Ccgt060208-Ak H01

Paihao:H01

Keywords:Inserts for Aluminum,Ak H01 Inserts,Ccgt21.52 Ak inserts ,Carbide Inserts,Aluminum Inserts,Ccgt06 Inserts,Ccgt Inserts,Ak Inserts

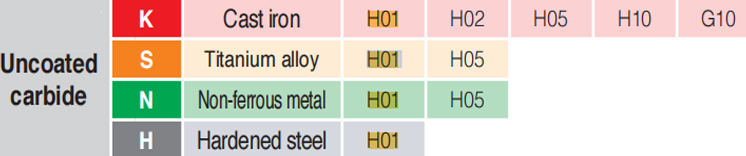

H01:Cast iron Titanium alloy Non-ferrous metal Hardened steel

Inquiry
CCGT060208-AK H01 CCGT21.52 AK Carbide Inserts for Aluminum CCGT06
Product Description

Features
H01:Cast iron Titanium alloy Non-ferrous metal Hardened steeldownLoadImg 44

DescriptionValue
Technical product number1-03-000319
Identifying order numberCCGT060208-AK H01
Company codeKOR - Korloy
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle80 Degree
Clearance angle major7 Degree
Cutting edge length6.4 mm
Inscribed circle diameter6.35 mm
Insert thickness2.38 mm
Corner radius0.8 mm
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationAK
Insert handN - Neutral
Tolerance class insertG
Insert thickness total2.38 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40° to 60°
Fixing hole diameter2.8 mm
Standard designation of the grade, main applicationCarbide
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationH01
Coatingohne
ISO property0
Standard designationCCGT060208
Standard designation ANSICCGT21.52

Main Products

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

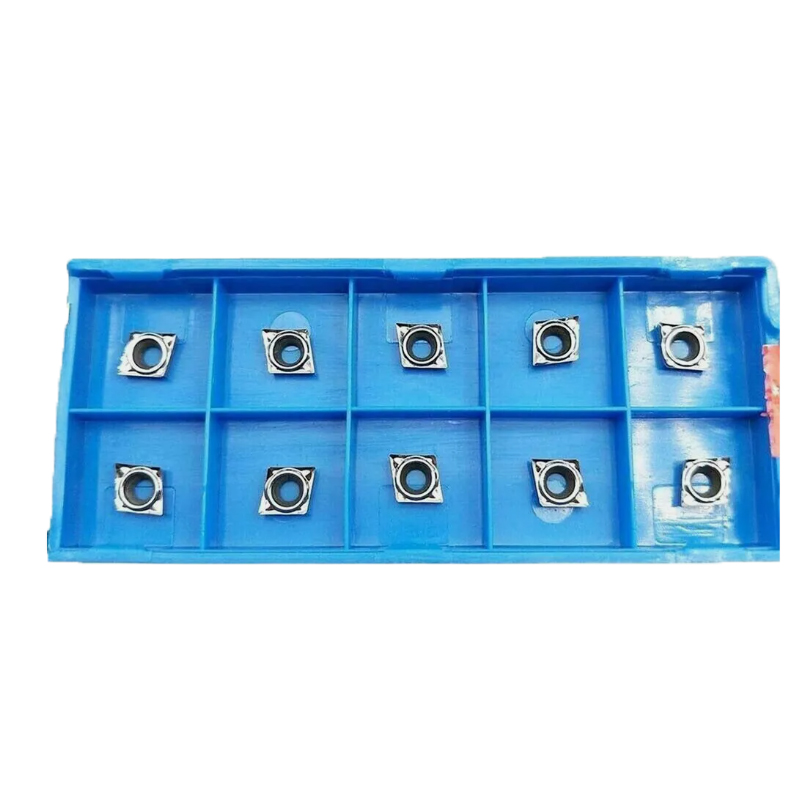

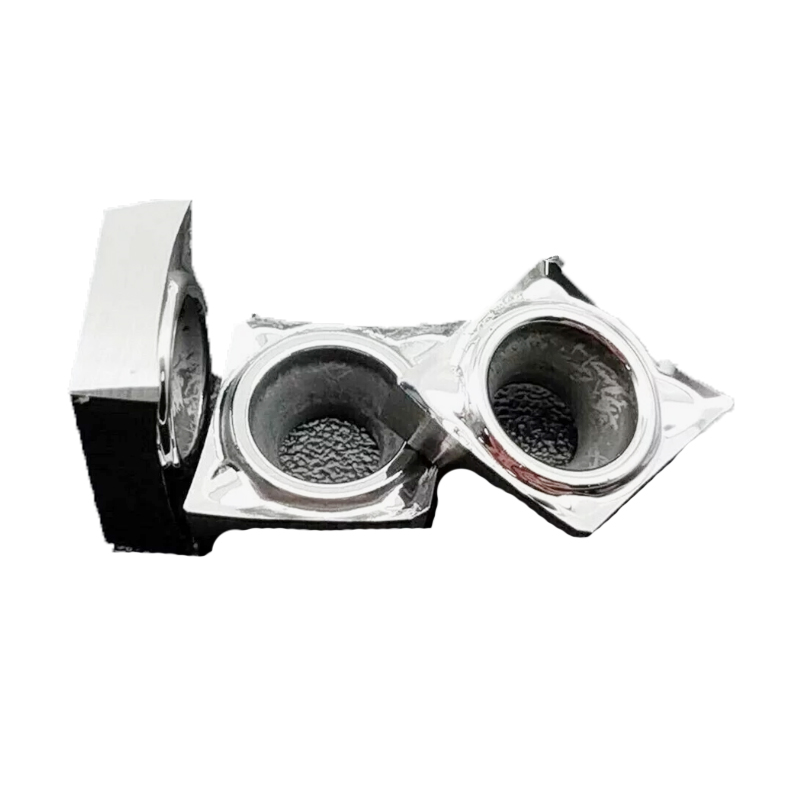

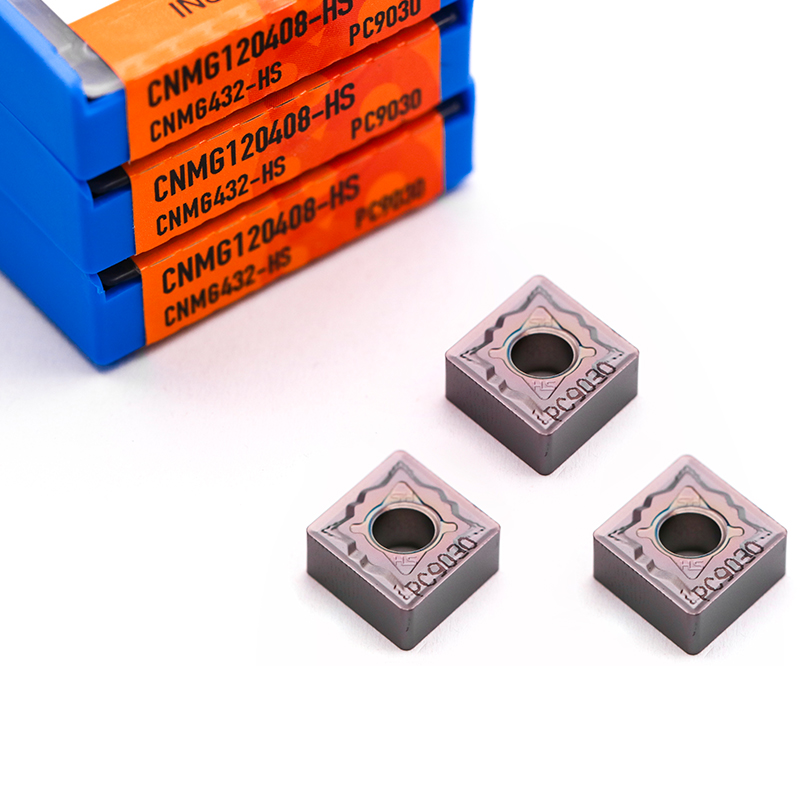

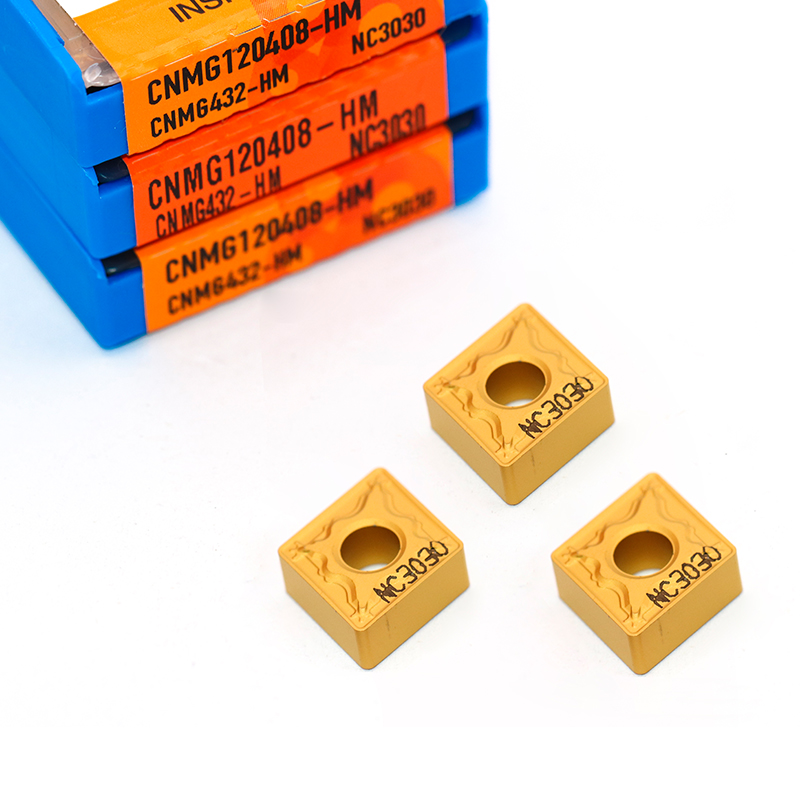

Detailed Photos

Detailed Photo

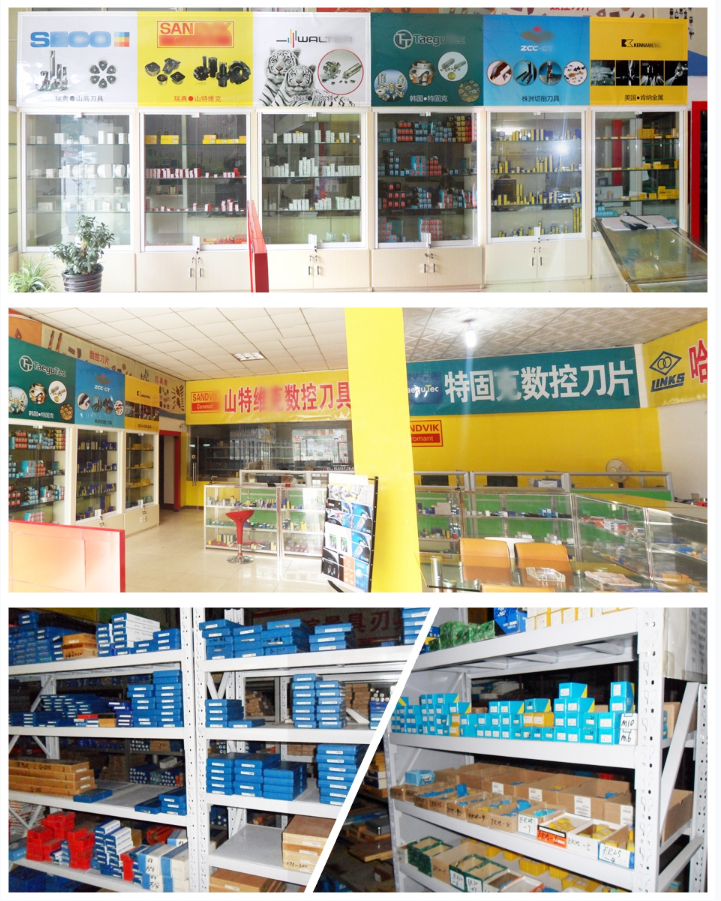

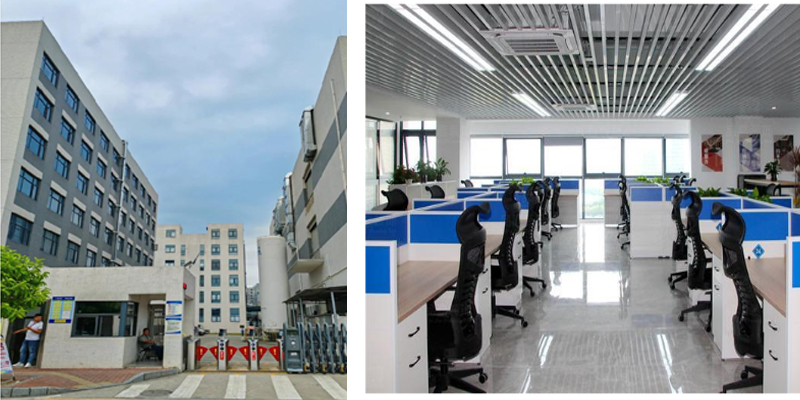

Company Profile
