10PCS Apkt1604pdfr-Ma3 CNC Carbide Milling Inserts for Aluminum Apkt1604

Specifications:APKT1604PDFR-MA3 H01

Paihao:H01

Keywords:Inserts for Aluminum,Aluminum Inserts,Milling Inserts,Apkt Inserts,Apkt1604pdfr-Ma3 inserts,Carbide Inserts,Apkt1604 Inserts,CNC Inserts

H01 K05-K30 N01-N25 Machining of Cast Iron, Copper

Inquiry
10Pcs APKT1604PDFR-MA3 CNC Carbide Milling Inserts For Aluminum APKT1604
Product Description

Features

H01 K05-K30 N01-N25 Machining of Cast Iron, Copper

DescriptionValue
Technical product number1-03-000219
Identifying order numberAPKT1604PDFR-MA3 H01
Company codeKOR - Korloy
Standard number of properties layoutDIN4000-76
Tool style code5
Insert included angle85 Degree
Clearance angle major11 Degree
Cutting edge length16.4 mm
Inscribed circle diameter9.525 mm
Insert thickness5 mm
Corner radius0.8 mm
Cutting edge angle major90 Degree
Clearance angle wiper edge15 Degree
Cutting edge condition codeF - Sharpedged
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationMA3
Insert handR - Right
Tolerance class insertK - Cold formed
Insert thickness total5 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40° to 60°
Fixing hole diameter4.4 mm
Standard designation of the grade, main applicationCarbide
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationH01
Coatingohne
ISO propertyH01 K05-K30 N01-N25 Machining of cast iron, copper and aluminum
Standard designationAPKT1604PDFR

Main Products
Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

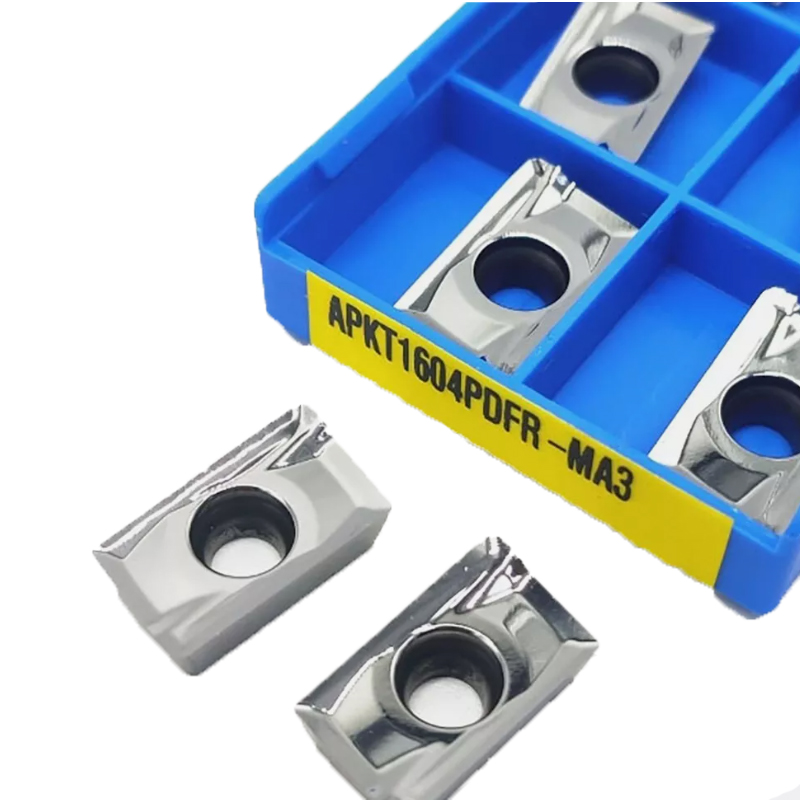

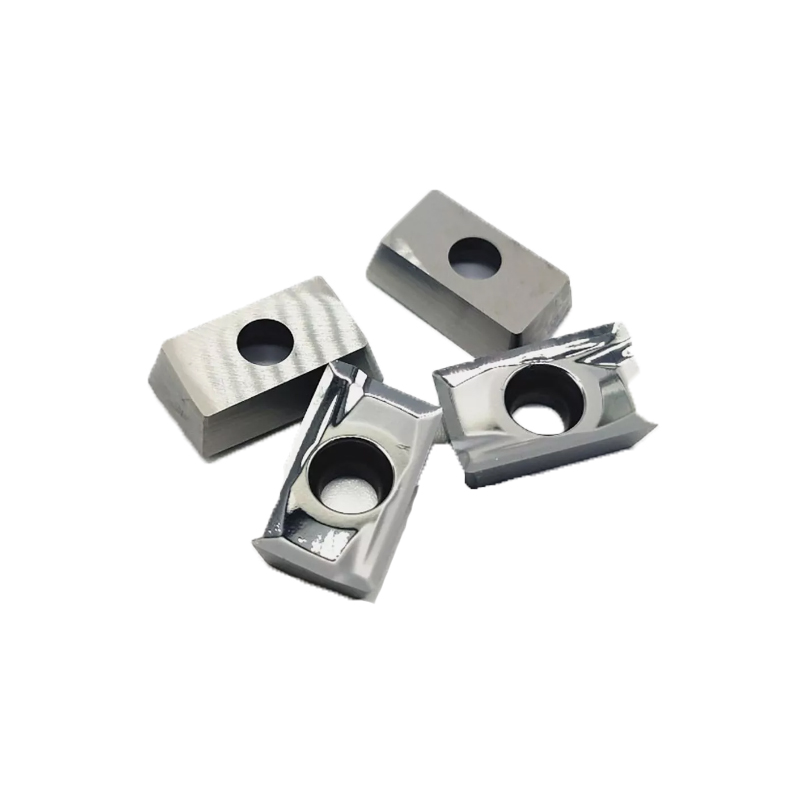

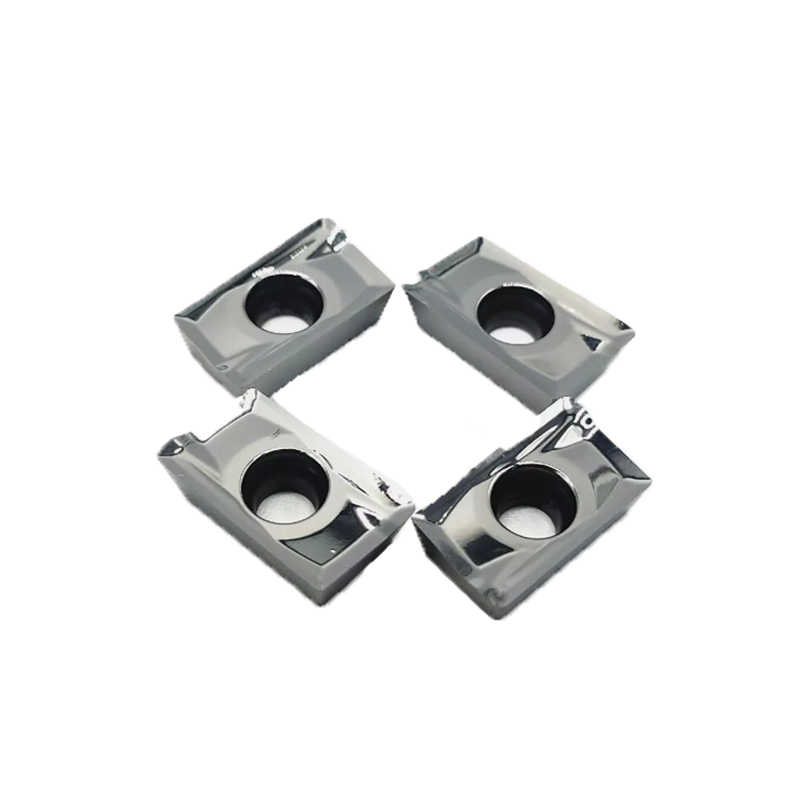

Detailed Photos

Detailed Photo

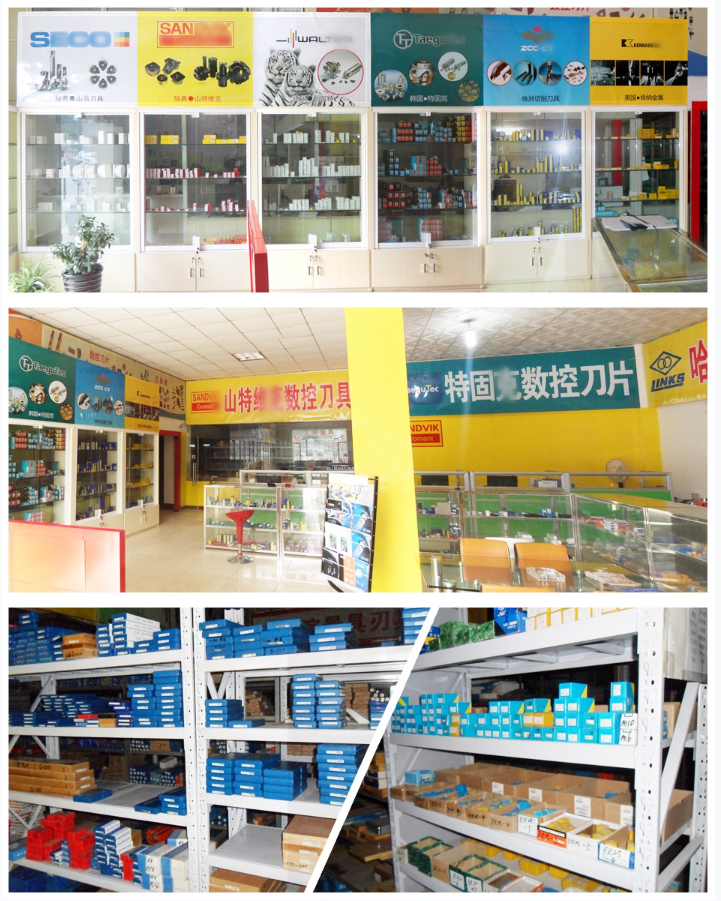

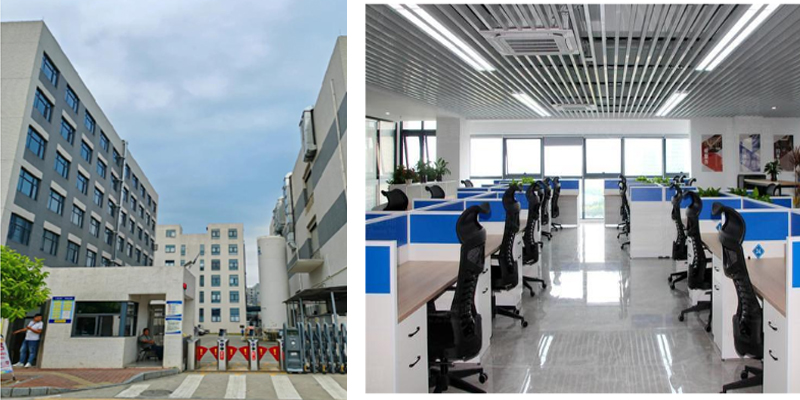

Company Profile
Company Profile
   Jinan Terry CNC Tool Co.,Ltd, which is near the world's fourth largest port, Qingdao Port. three hours drive from the capital of China, BeiJing. Located in the famous industrial city Jinan, the capital of Shandong Province.
   Established in 2011,after 13 years of development,we have become an outstanding comprehensive agent for imported CNC cutting tools. We have more than 5 engineers, 50 staff and 10 excellent salesmen and related service persons. We sell all kinds of CNC tools,such as carbide inserts,tool holders,end mills,taps,drills,collect chucks,etc.
    We have high quality products and affordable prices. We also cooperate with multiple well-known suppliers.We have a large amount of stocks and fast delivery speed.And we promise our products are 100% original genuine products. The quality of products, management system, sales volume and brand awareness are all in the front ranks.We are trying our best to provide the world manufacturing with as more as excellent cutting tools.
   Our company adhere to the business philosophy:"Honesty, trustworthiness, new, fast, excellent and inexpensive" and the service tenet of "Buy the rest assured that with reality, "supply the imported world famous CNC tools for mechanical processing enterprises.
Jinan Terry CNC Tool Co.,Ltd upholding the" customer first service supreme" management ideas, sincerely welcome the people from all over the world to visit and cooperate

Packaging & Shipping

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tapedownLoadImg 308-4Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.downLoadImg 308-12

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
 T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week.
