Korloy Carbide Turning Inserts Cnmg120404-RM Nc9125

Specifications:CNMG120404-RM NC9125

Paihao:NC9125

Keywords:Korloy Inserts,Carbide Inserts,Turning Inserts,Cnmg Inserts,Cnmg120404 Inserts,Nc9125 Inserts

High toughness substrate: Suitable for conditions involving slight interrupted cutting, vibration, or where better cutting edge strength is required. Versatility: Designed for medium to high-speed turning of materials such as steel, alloy steel, and stainless steel. Balance of wear resistance and toughness: Achieves a good balance between wear resistance and chipping resistance. A yellow or light golden coating is its typical visual characteristic.

Inquiry

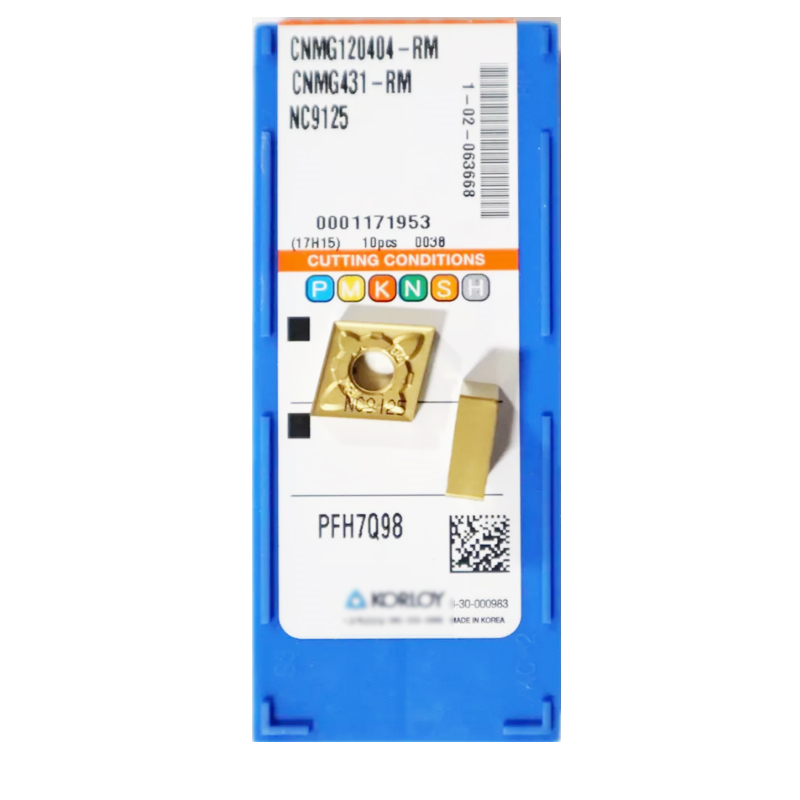

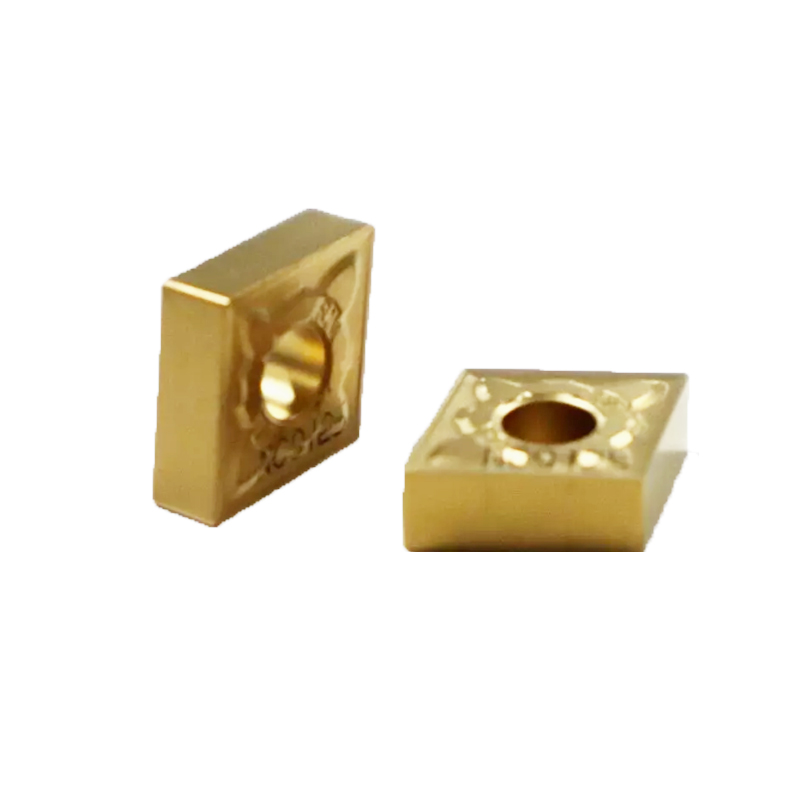

KORLOY Carbide Turning Inserts  CNMG120404-RM NC9125
Product Description

Features

High toughness substrate: Suitable for conditions involving slight interrupted cutting, vibration, or where better cutting edge strength is required.


Versatility: Designed for medium to high-speed turning of materials such as steel, alloy steel, and stainless steel.


Balance of wear resistance and toughness: Achieves a good balance between wear resistance and chipping resistance.

A yellow or light golden coating is its typical visual characteristic.


DescriptionValue
Technical product number1-02-063668
Identifying order numberCNMG120404-RM NC9125
Company codeKOR - Korloy
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle80 Degree
Clearance angle major0 Degree
Cutting edge length12.896 mm
Inscribed circle diameter12.7 mm
Insert thickness4.76 mm
Corner radius0.4 mm
Chip breaker face count2 - With chip breaker on both sides
Chip breaker manufacturers designationRM
Insert handN - Neutral
Tolerance class insertM
Insert thickness total4.76 mm
Insert mounting style code2 - With cylindrical bore
Fixing hole diameter5.16 mm
Grade manufacturer's designationNC9125
ISO property1
Standard designationCNMG120404
Standard designation ANSICNMG431
Master insert identificationCNMG120404 NC9125

Main Products

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer
Detailed Photos

Detailed Photo

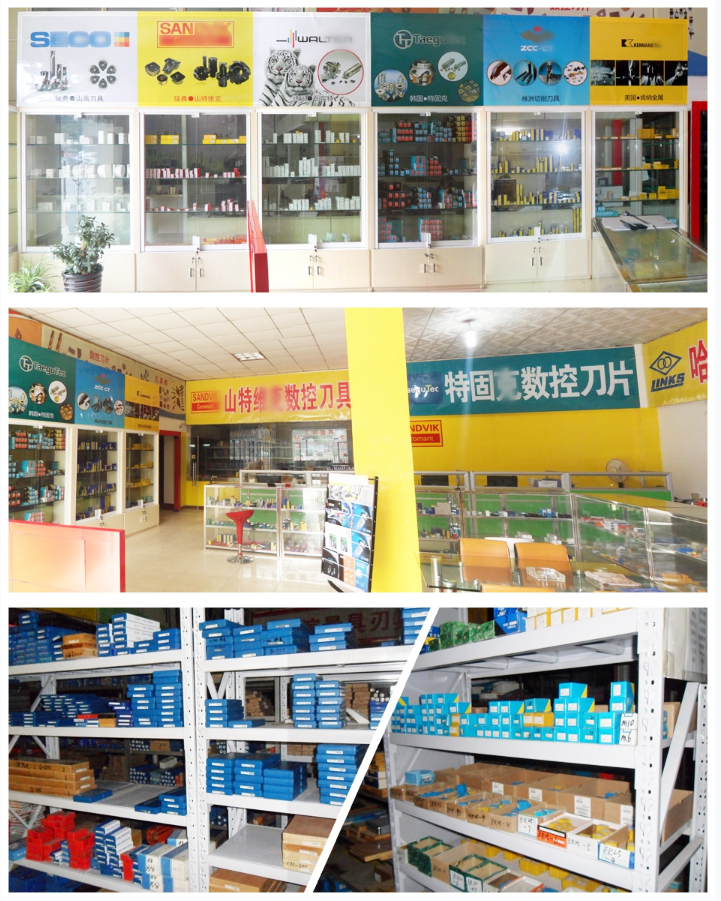

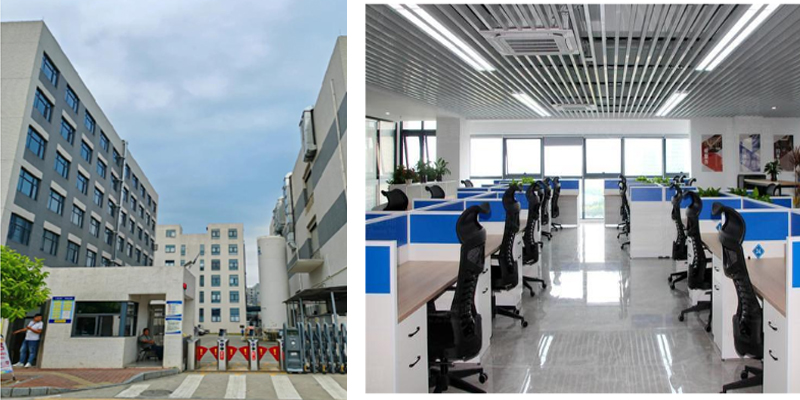

Company Profile

Company Profile
   Jinan Terry CNC Tool Co.,Ltd, which is near the world's fourth largest port, Qingdao Port. three hours drive from the capital of China, BeiJing. Located in the famous industrial city Jinan, the capital of Shandong Province.
   Established in 2011,after 13 years of development,we have become an outstanding comprehensive agent for imported CNC cutting tools. We have more than 5 engineers, 50 staff and 10 excellent salesmen and related service persons. We sell all kinds of CNC tools,such as carbide inserts,tool holders,end mills,taps,drills,collect chucks,etc.
    We have high quality products and affordable prices. We also cooperate with multiple well-known suppliers.We have a large amount of stocks and fast delivery speed.And we promise our products are 100% original genuine products. The quality of products, management system, sales volume and brand awareness are all in the front ranks.We are trying our best to provide the world manufacturing with as more as excellent cutting tools.
   Our company adhere to the business philosophy:"Honesty, trustworthiness, new, fast, excellent and inexpensive" and the service tenet of "Buy the rest assured that with reality, "supply the imported world famous CNC tools for mechanical processing enterprises.
Jinan Terry CNC Tool Co.,Ltd upholding the" customer first service supreme" management ideas, sincerely welcome the people from all over the world to visit and cooperate

Packaging & Shipping

Packaging:

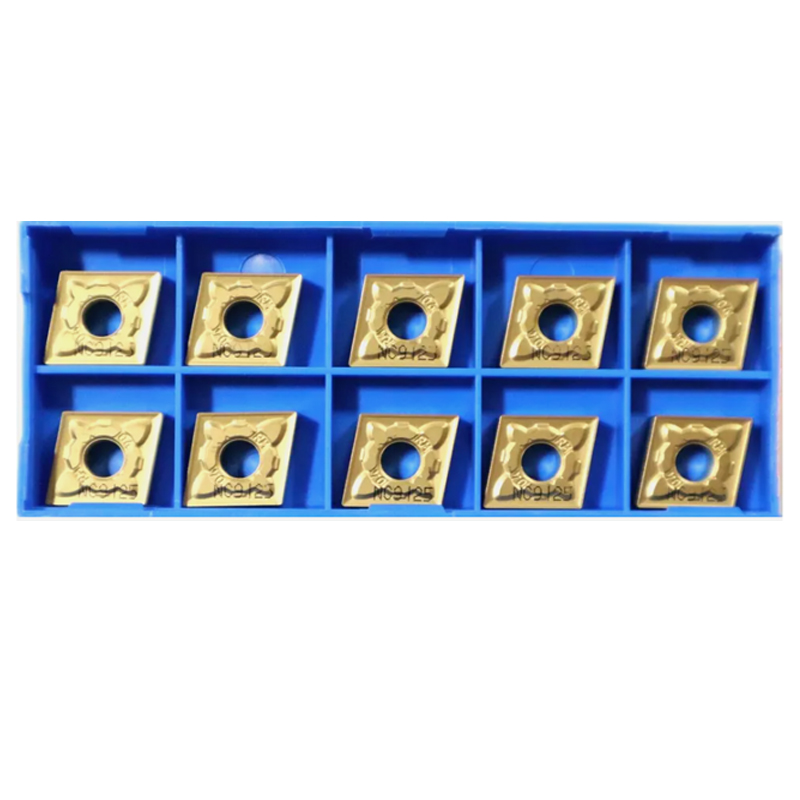

Packaging:10 pcs/plastic box, then by carton;
