Korloys Korean Round Stainless Steel Cutting lathe Inserts Vcmt160404 Hmp PC9030

Specifications:Vcmt160404 Hmp PC9030

Paihao:PC9030

Keywords:Vcmt Inserts,Korloy Inserts,cutting inserts, Stainless Steel inserts,lathe inserts,Korean inserts,Hmp PC9030 inserts

Processing Material:Stainless Steel

Inquiry

Korean round stainless steel Cutting inserts Vcmt160404 Hmp PC9030

Product Description

Features
PC9030
M30-M40
Stainless steel semi-finishing, roughing and heavy intermittent machining
TiAIN coating and ultra-micronized substrate
-Chipping and fusion resistance for stable machining

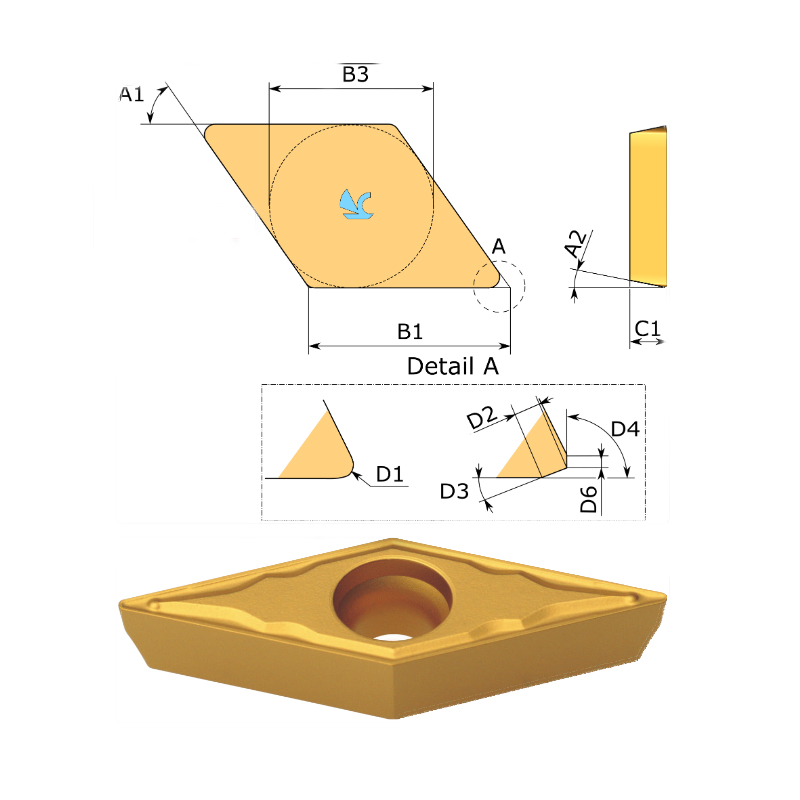

Geometric data

DescriptionValue
J20Technical product number1-02-019298
J21Identifying order numberVCMT160404-HMP PC9030
J3Company codeKOR - Korloy
NSMStandard number of properties layoutDIN4000-76
BLDTool style code3
A1Insert included angle35 Degree
A2Clearance angle major7 Degree
B1Cutting edge length16.6 mm
B3Inscribed circle diameter9.525 mm
C1Insert thickness4.76 mm
D1Corner radius0.4 mm
D75Weight of item0.0081 kg
E6Chip breaker face count1 - With chip breaker one-side
E9Chip breaker manufacturers designationHMP
F1Insert handN - Neutral
G1Tolerance class insertM
G4Insert thickness total4.76 mm
G5Insert mounting style code3 - Counter bore for screws with taper angle
G6Fixing hole diameter4.4 mm
H11Standard designation of the grade, main applicationCarbide
H2Coolant supply property0 - Without coolant supply
H3Grade manufacturer's designationPC9030
H5CoatingCoated
ISISOISO property0
J11Standard designationVCMT160404
J11AStandard designation ANSIVCMT331

Specifications Details

ModelVCMT160404 HMP PC9030
Brand NameKORLOYS
Place of OriginSouth Korea
CoatingPVD CVD
Processing MaterialSTEEL
Packageoriginal plastic box
MOQ10PCS
ApplicationExternal turning work on metal material
Delivery time Short
TransportTNT\DHL\ FedEx\ EMS\ UPS
PaymentL/C T/T D/P Western Union/ Paypal

Company's main product

CNC cutting toolsCarbide insertTool holder
Boring barEnd millReamer
Collet chuckDrill bitMilling cutter
Hand tapMachine tapMeasuring tools
Vernier caliperDigital caliperDial inicator
ComparatorTool adjusterCaliper gauge
Gauge blockGaugeDigital indicator
Micrometer

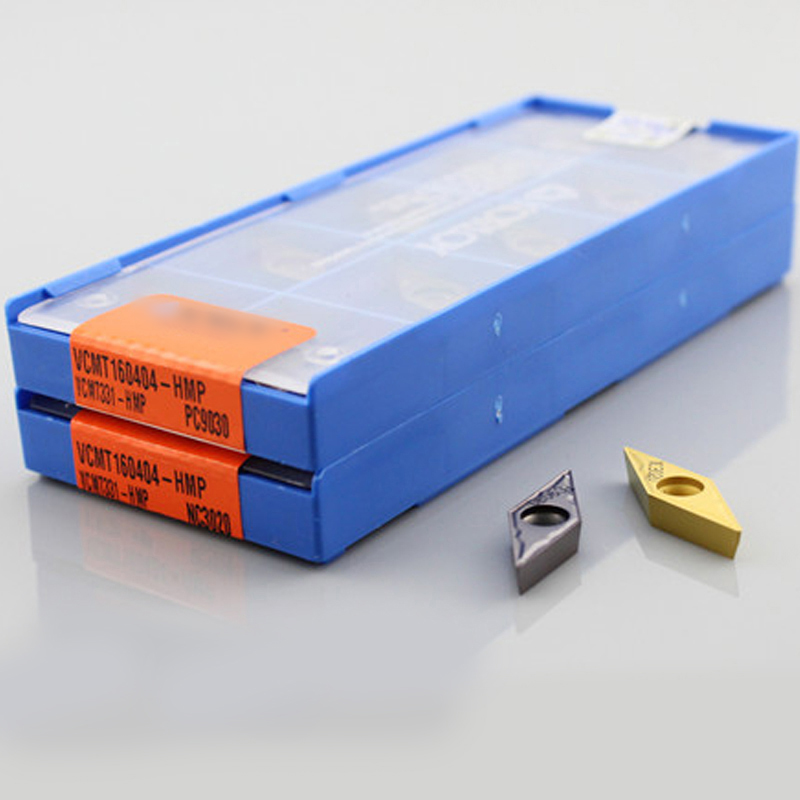

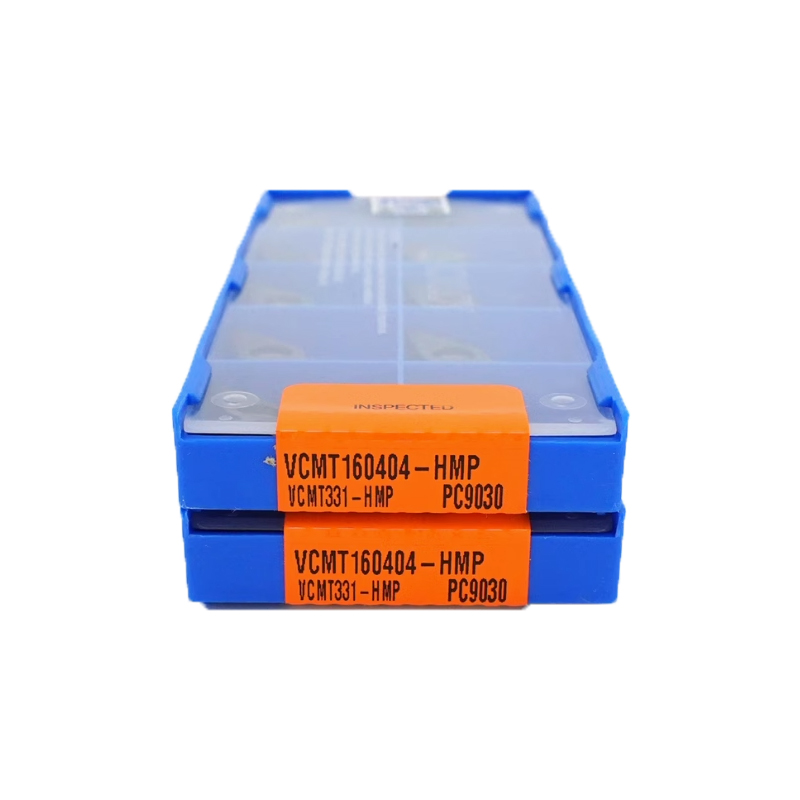

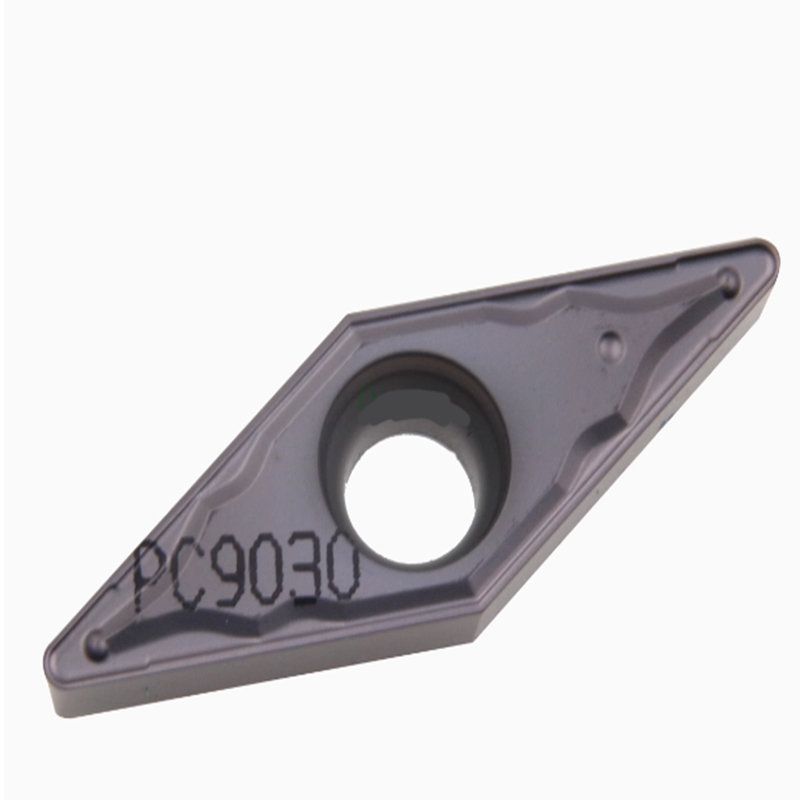

Detailed Photos

Detailed Photo


Packaging & Shipping

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tapedownLoadImg 308-4

Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.downLoadImg307

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
 T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week.

downLoadImg306
