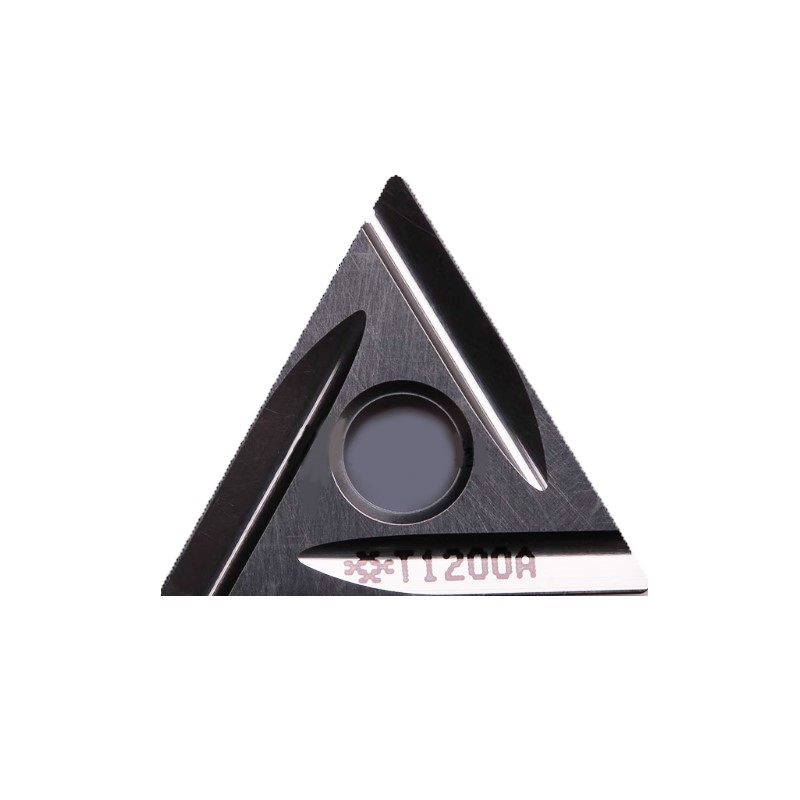

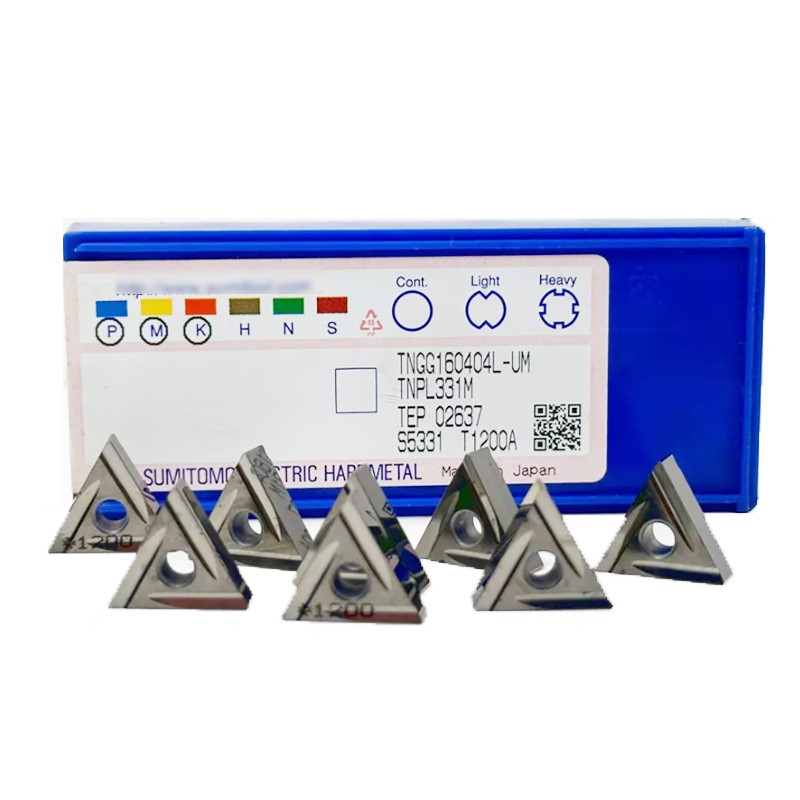

SUMITOMO TNPL331M TNGG160404L-UM Carbide Inserts T1200A for steel

Specifications:TNGG160404LUM T1200A

Paihao:T1200A

Keywords:steel inserts,sumitomo inserts,tngg inserts,t1200a inserts

The T1200A is used for machining steel parts and is a coated tool for finishing.

Inquiry

SUMITOMO TNPL331M TNGG160404L-UM  Carbide Inserts T1200A for steel

Product Description

Key attributes
The T1200A is used for
machining steel parts
and is a coated tool for finishing.

DescriptionValue
Technical product number6458
Identifying order numberTNGG160404LUMT1200A
Company codeSU - Sumitomo
Standard number of properties layoutDIN4000-76
Tool style code1
Insert included angle60 Degree
Clearance angle major0 Degree
Cutting edge length16.5 mm
Inscribed circle diameter9.525 mm
Insert thickness4.76 mm
Corner radius0.4 mm
Cutting edge condition codeE - Rounded
Chip breaker face count2 - With chip breaker on both sides
Chip breaker manufacturers designationLUM
Insert handL - Left
Tolerance class insertG
Insert thickness total4.76 mm
Insert mounting style code2 - With cylindrical bore
Fixing hole diameter3.81 mm
Standard designation of the grade, main applicationHT-P10
Standard designation of the grade, 2nd applicationHT-P05
Standard designation of the grade, 3rd applicationHT-P15
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationT1200A
Tipped cutting edge codeS
ISO property1
Standard designationTNGG160404
Standard designation ANSITNGG331
Master insert identificationTNGG160404 T1200A

Main Products:

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

Main Famous brand: product brand

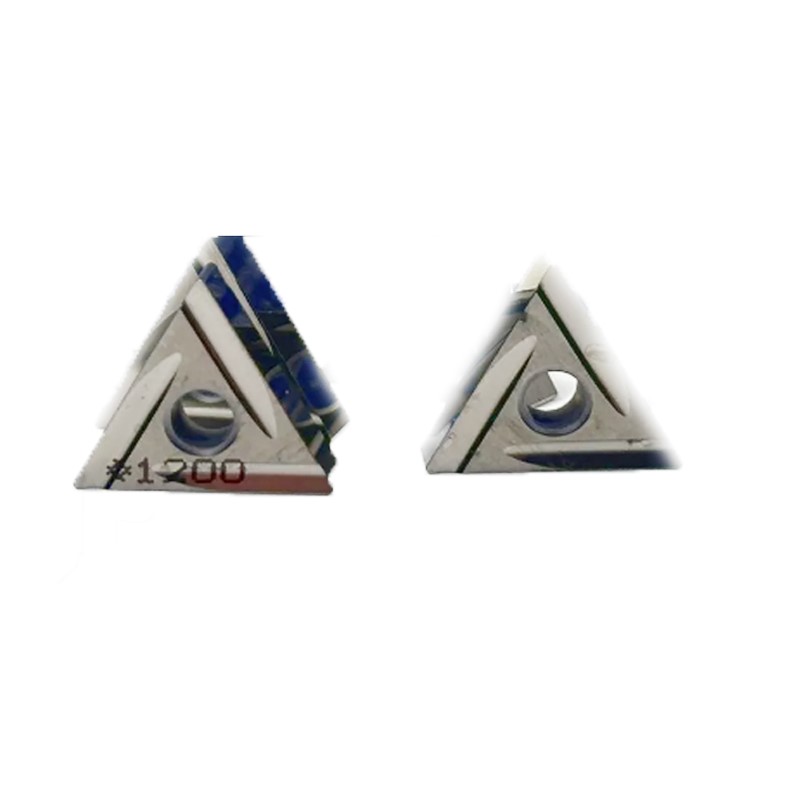

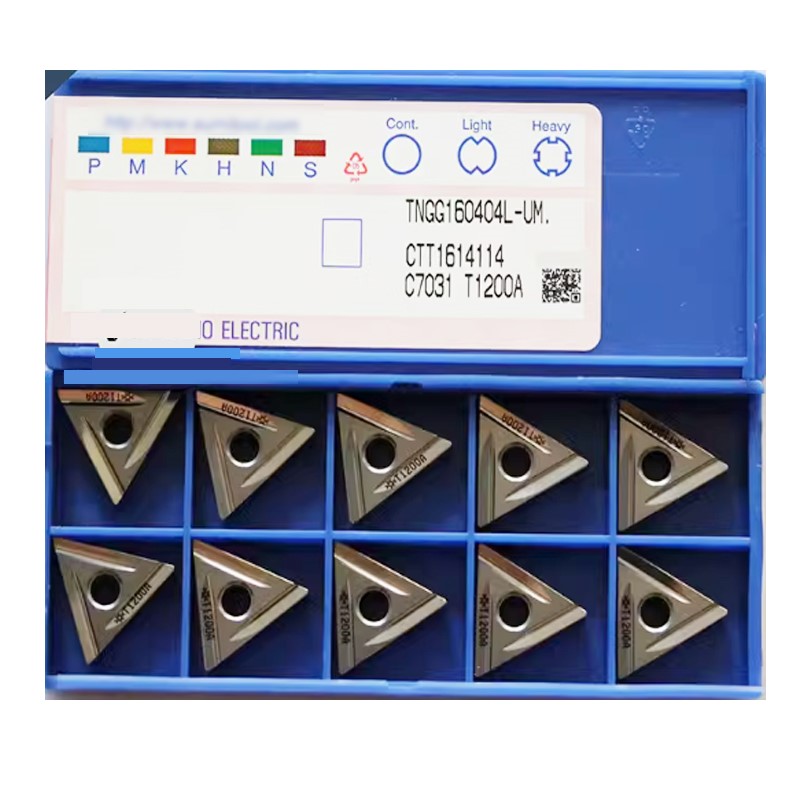

Detailed Photos

Detailed Photos

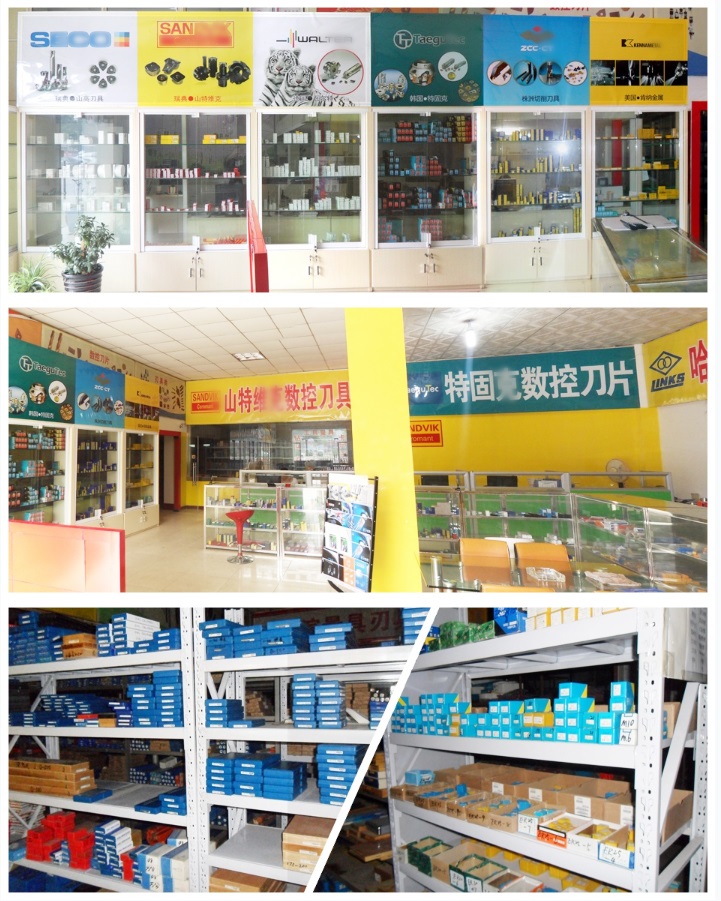

Company Profile
Company Profile
   Jinan Terry CNC Tool Co.,Ltd, which is near the world's fourth largest port, Qingdao Port. three hours drive from the capital of China, BeiJing. Located in the famous industrial city Jinan, the capital of Shandong Province.
   Established in 2011,after 13 years of development,we have become an outstanding comprehensive agent for imported CNC cutting tools. We have more than 5 engineers, 50 staff and 10 excellent salesmen and related service persons. We sell all kinds of CNC tools,such as carbide inserts,tool holders,end mills,taps,drills,collect chucks,etc.
    We have high quality products and affordable prices. We also cooperate with multiple well-known suppliers.We have a large amount of stocks and fast delivery speed.And we promise our products are 100% original genuine products. The quality of products, management system, sales volume and brand awareness are all in the front ranks.We are trying our best to provide the world manufacturing with as more as excellent cutting tools.
   Our company adhere to the business philosophy:"Honesty, trustworthiness, new, fast, excellent and inexpensive" and the service tenet of "Buy the rest assured that with reality, "supply the imported world famous CNC tools for mechanical processing enterprises.
Jinan Terry CNC Tool Co.,Ltd upholding the" customer first service supreme" management ideas, sincerely welcome the people from all over the world to visit and cooperatedownLoadImg 34
Packaging & Shipping

Packaging:

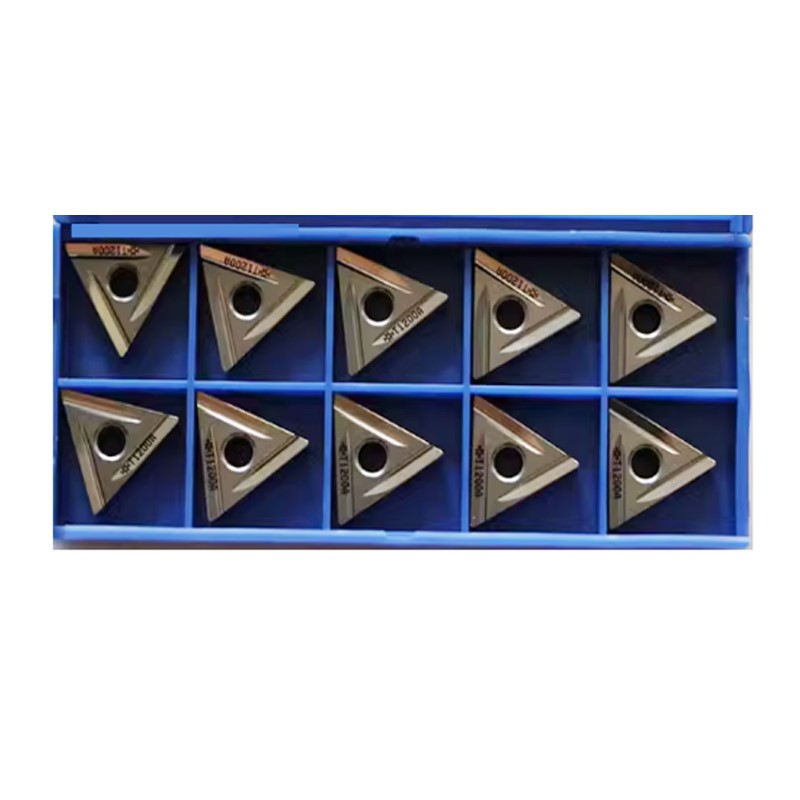

Packaging:10 pcs/plastic box, then by carton;
