Tungsten CNC Machine Cutting Tool Inserts Ccmt120408n-Sk AC820p

Specifications:CCMT120408N-SK AC820P

Paihao:AC820P

Keywords:Cutting Tool Insert,Tungsten Tool,CNC Machine tool,Cutting Tool,cutting inserts,ccmt inserts

Process material:Steel part

Inquiry

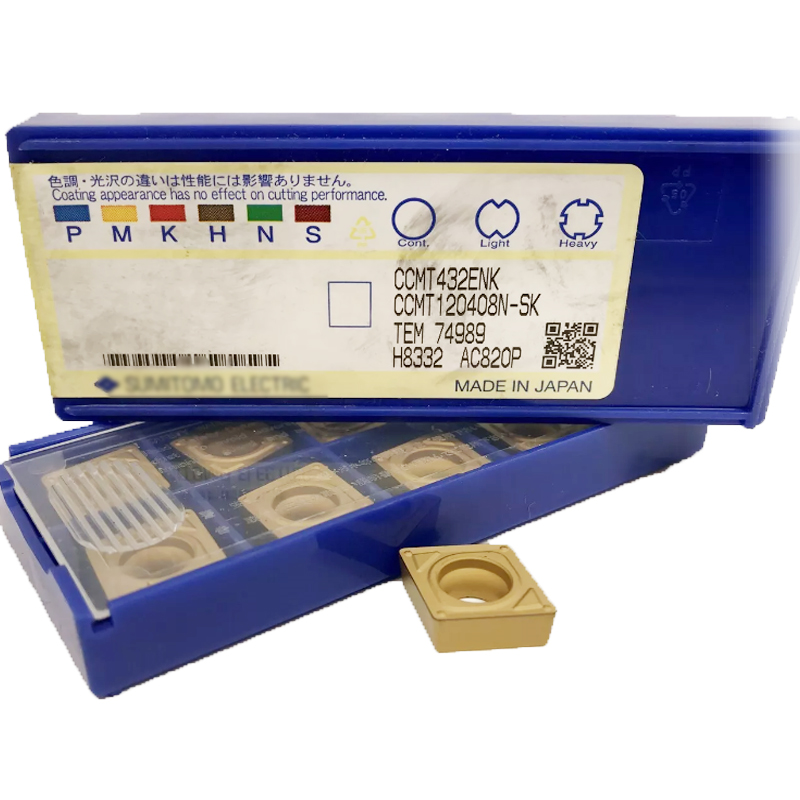

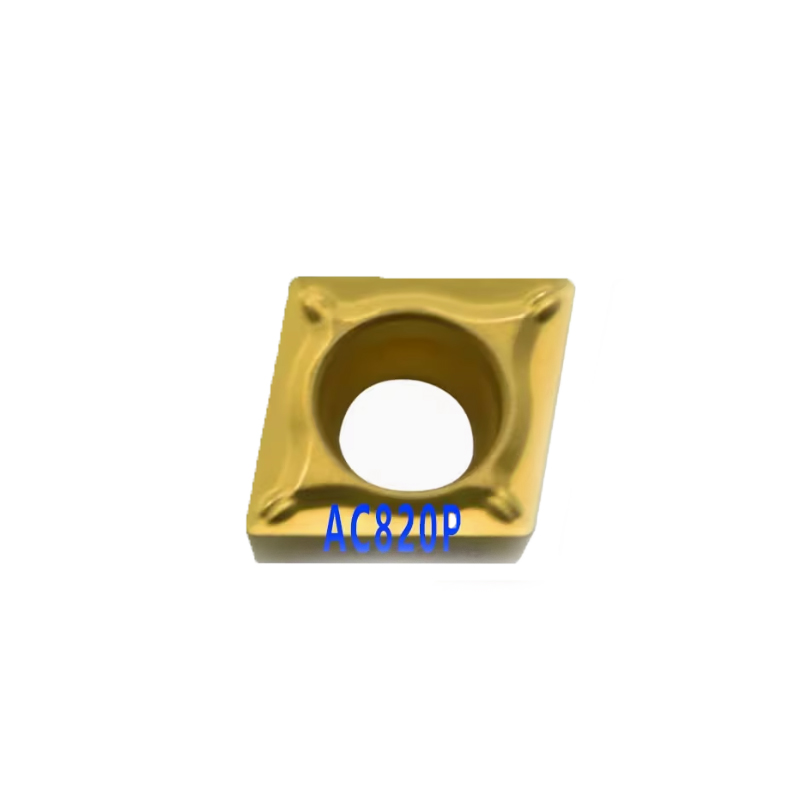

Tungsten CNC Machine Cutting Tool inserts CCMT120408N-SK AC820P

Product Description

Key attributes

DescriptionValue
Technical product numberCCMT120408N-SK AC820P
Identifying order numberCCMT120408N-SK AC820P
Company codeSU - Sumitomo
Standard number of properties layoutDIN4000-76
Tool style code3
Insert included angle80 Degree
Clearance angle major7 Degree
Inscribed circle diameter12.7 mm
Insert thickness4.762 mm
Corner radius0.8 mm
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationSK
Insert handN - Neutral
Tolerance class insertM
Insert thickness total4.762 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40°to 60°
Fixing hole diameter5.499 mm
Standard designation of the grade, main applicationHC-P20
Standard designation of the grade, 2nd applicationHC-P30
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationAC820P
CoatingSuperFF
ISO property0
Standard designationCCMT120408
Standard designation ANSICCMT432

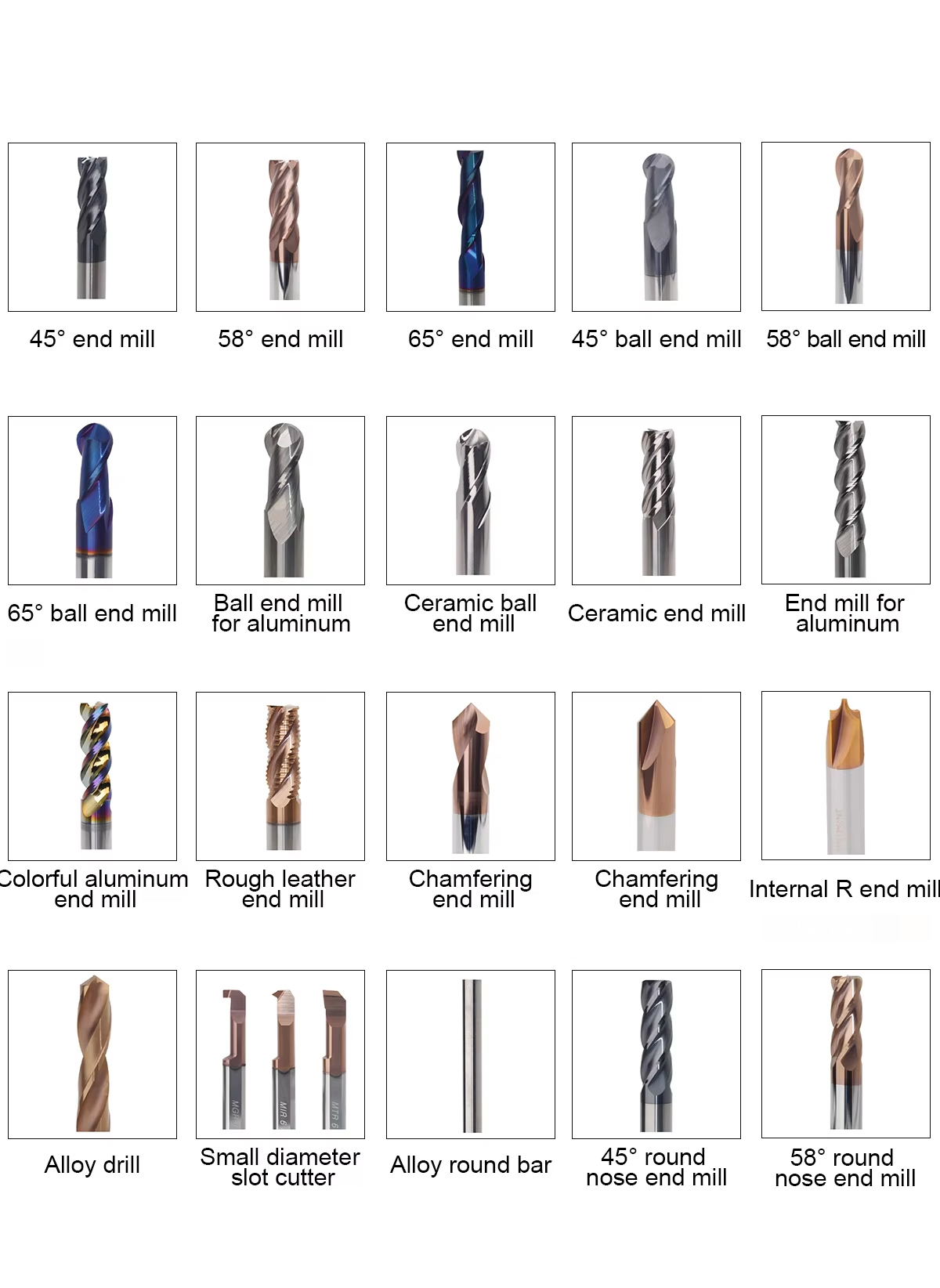

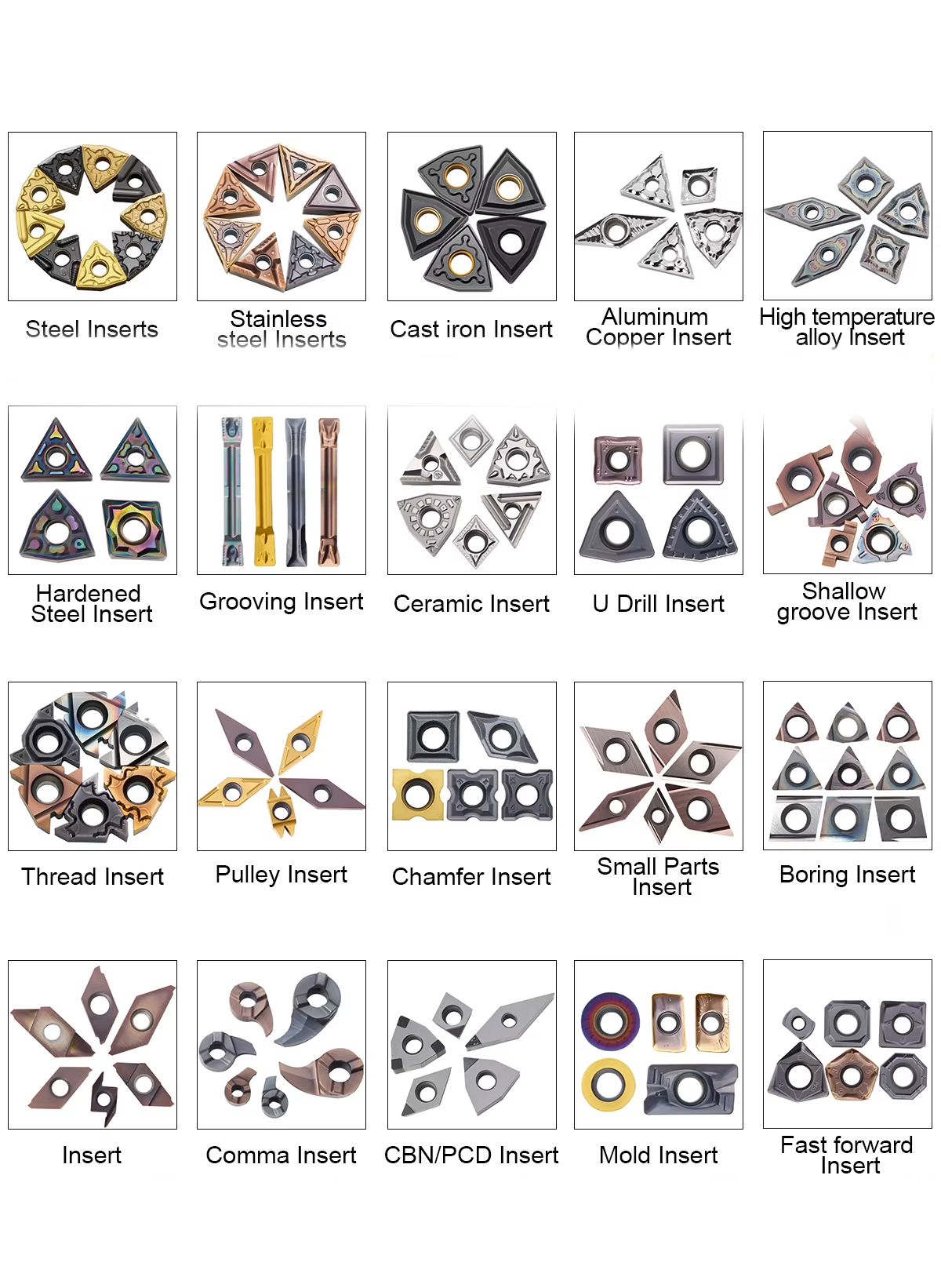

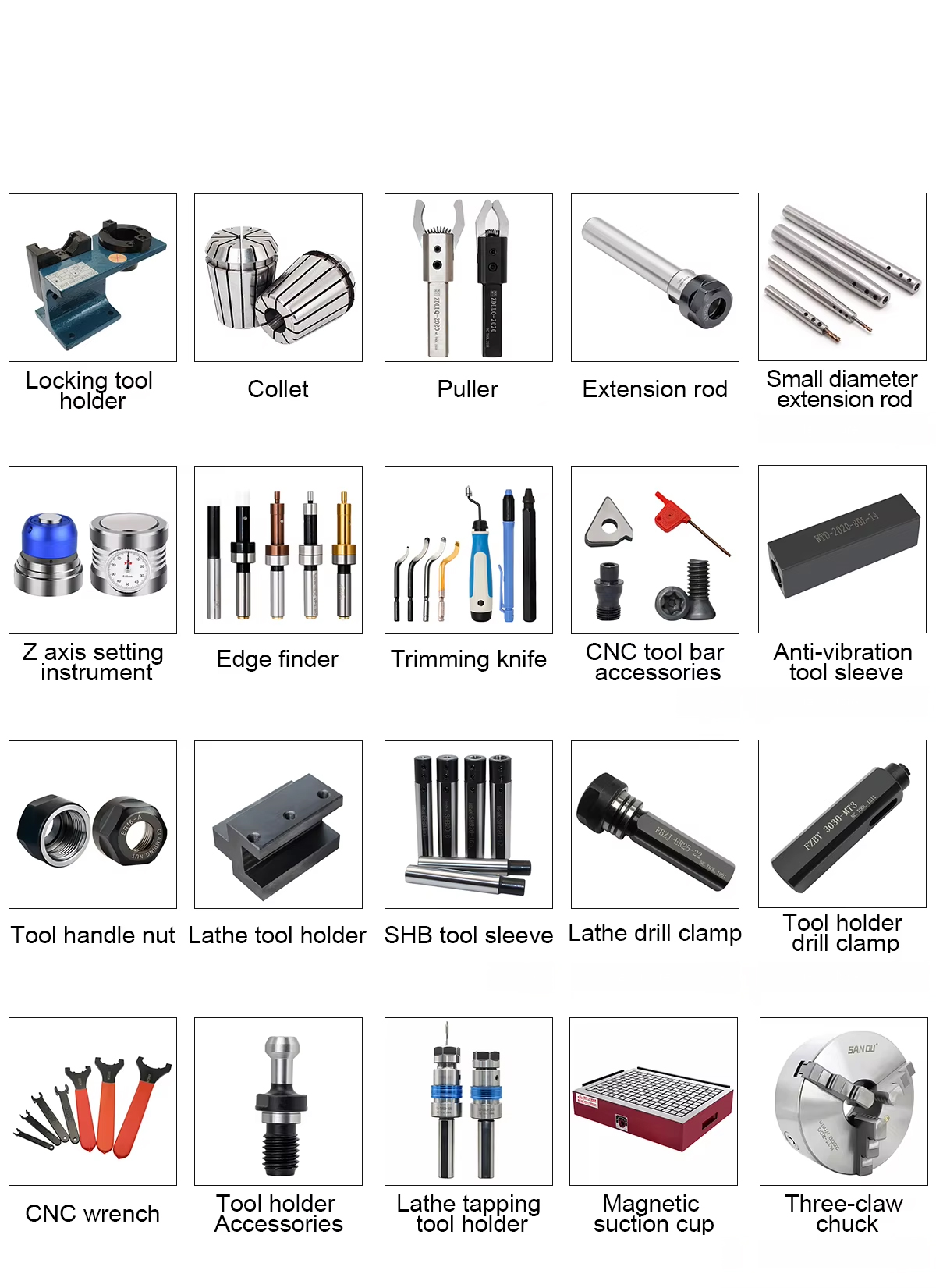

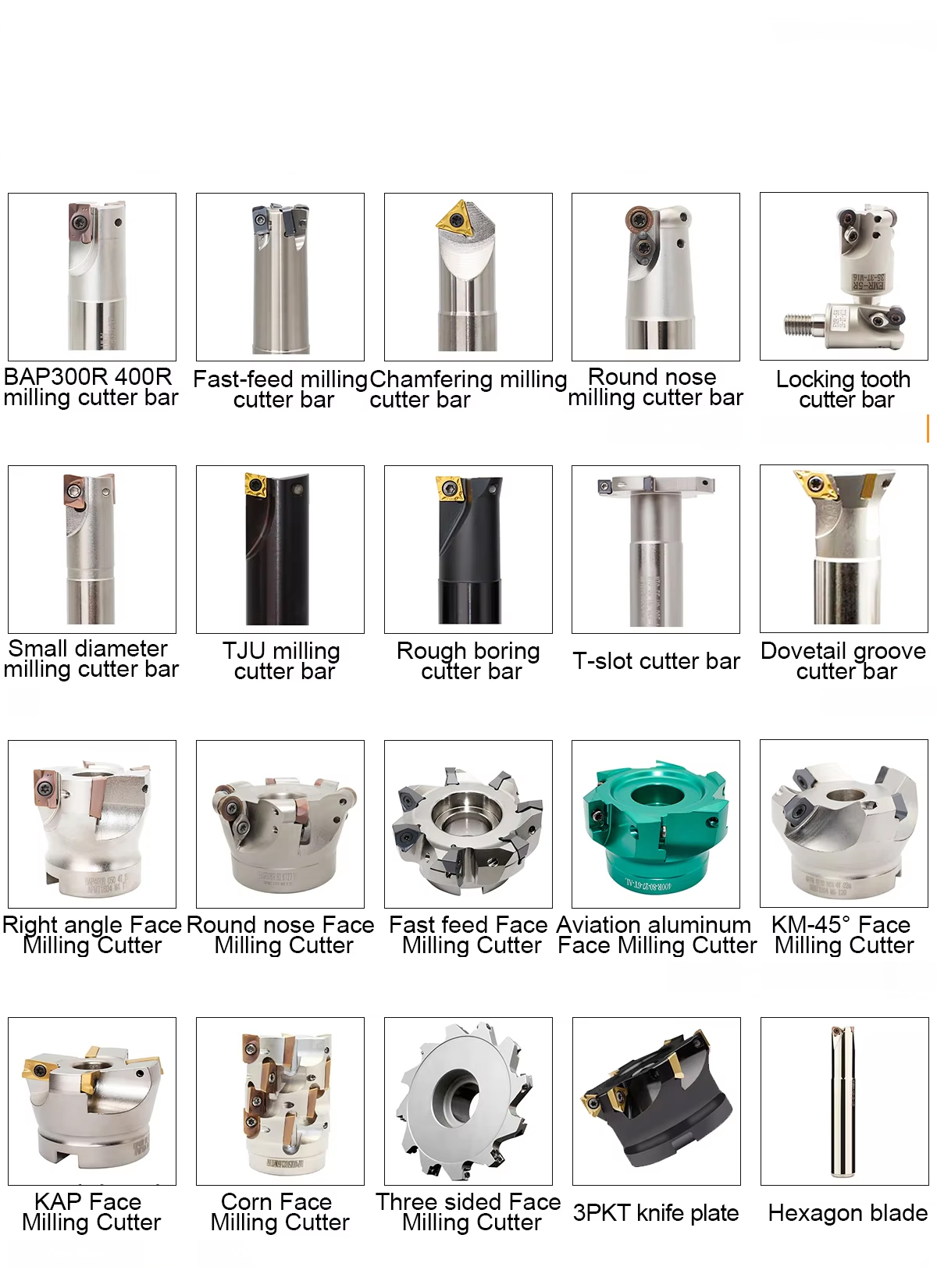

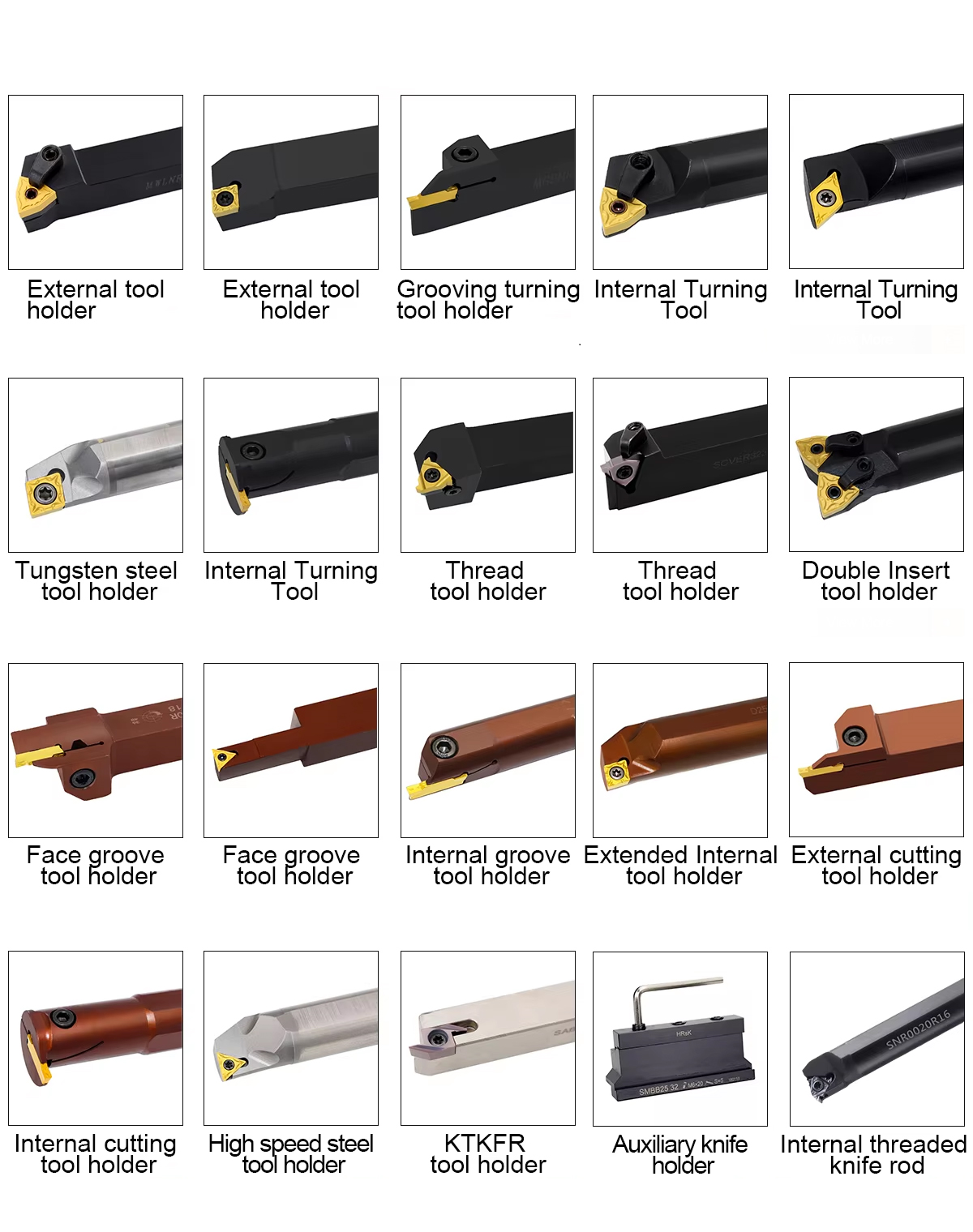

Main Products:

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

Main Famous brand:

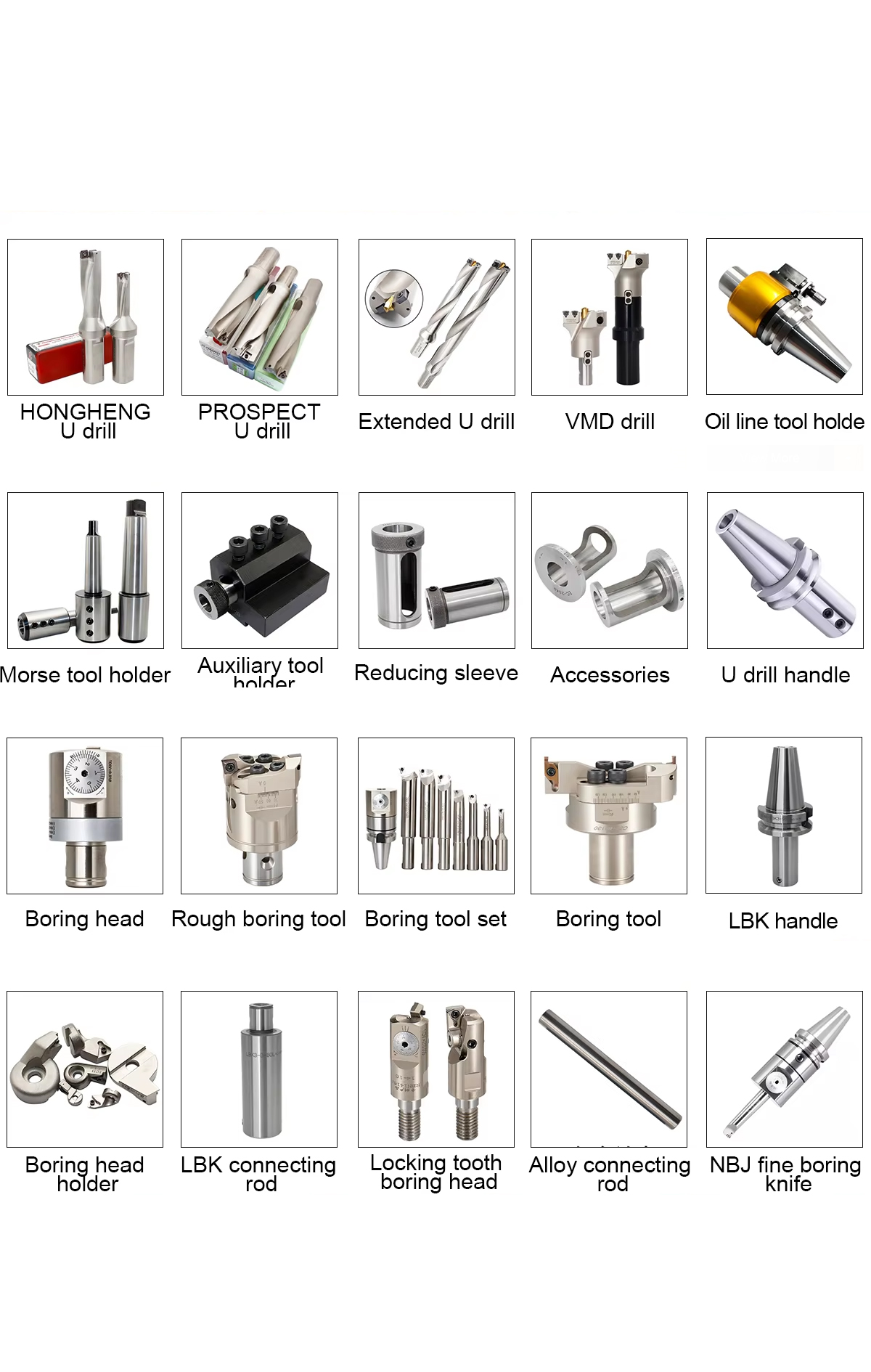

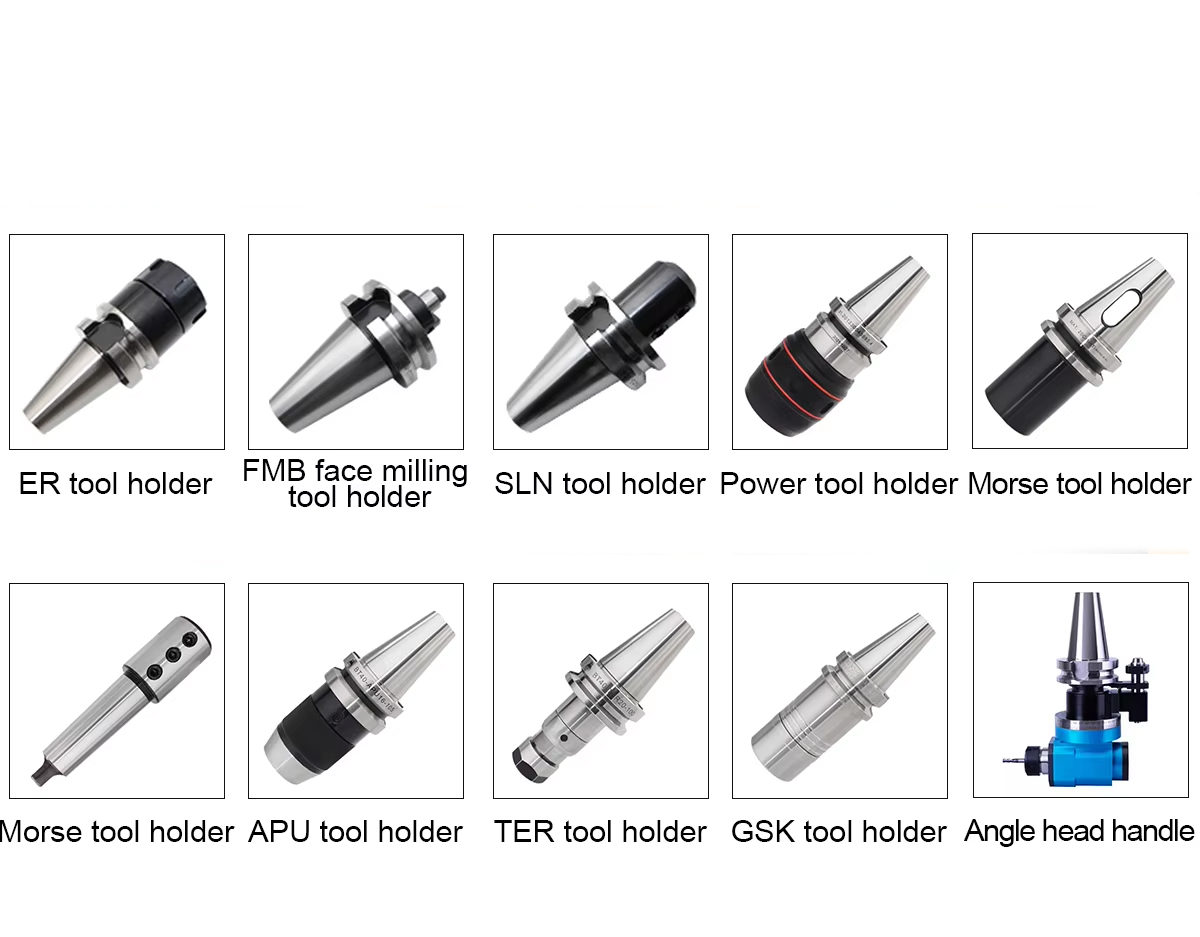

Detailed Photos

Detailed Photos

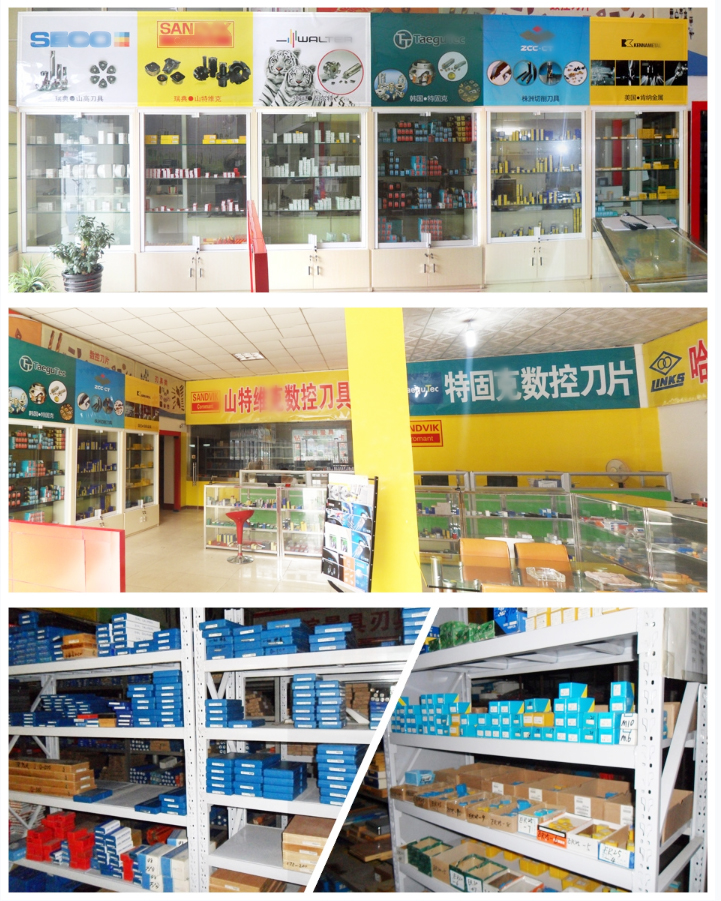

Company Profile
