PVD Coating Tungaloys Stainless Steel Milling Inserts Swmt1304pdpr-Mj Ah140

Specifications:SWMT1304PDPR-MJ AH140

Paihao: AH140

Keywords:PVD Coating,Stainless Steel Milling Insert,Steel,Milling Insert,Insert,PVD Coating Inserts

Pvd coating tungaloy Stainless steel milling inserts SWMT1304PDPR-MJ AH140Product DescriptionFeature

Inquiry
Pvd coating tungaloy Stainless steel milling inserts SWMT1304PDPR-MJ AH140
Product Description

Features
AH140 Stainless steel milling material For milling stainless steel at low speeds.

DescriptionValue
Technical product number6846121
Identifying order numberSWMT1304PDPR-MJ AH140
Company codeTT - Tungaloy
Standard number of properties layoutDIN4000-76
Tool style code2
Insert included angle90 Degree
Clearance angle major18.5 Degree
Cutting edge length13.9 mm
Inscribed circle diameter13.9 mm
Insert thickness5 mm
Corner chamfer width1.4 mm
Cutting edge angle major90 Degree
Clearance angle wiper edge15 Degree
Cutting edge condition codeP - Doublechamfered and rounded
Face land width1.4 mm
Chip breaker face count1 - With chip breaker one-side
Cutting edge effective length10 mm
Chip breaker manufacturers designationMJ
Insert handR - Right
Tolerance class insertM
Insert thickness total5 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40°to 60°
Fixing hole diameter3.52 mm
Standard designation of the grade, main applicationHC-M35
Standard designation of the grade, 2nd applicationHC-M40
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationAH140
CoatingTiAlN-PVD
ISO property0
Standard designationSWMT1304PDPR
Detailed Photos

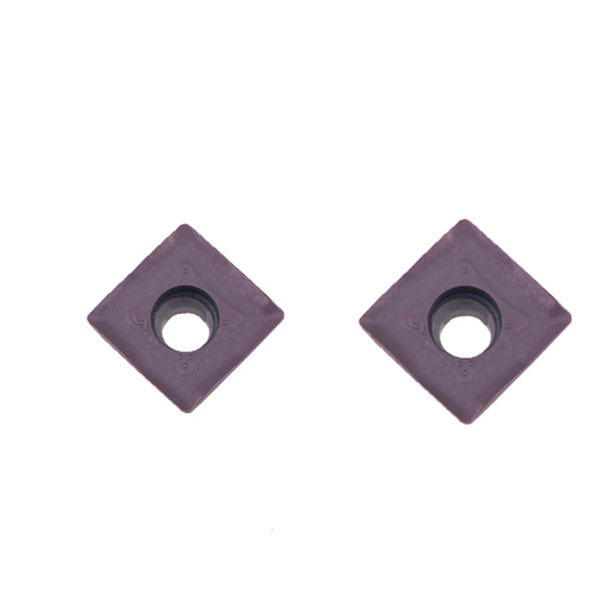

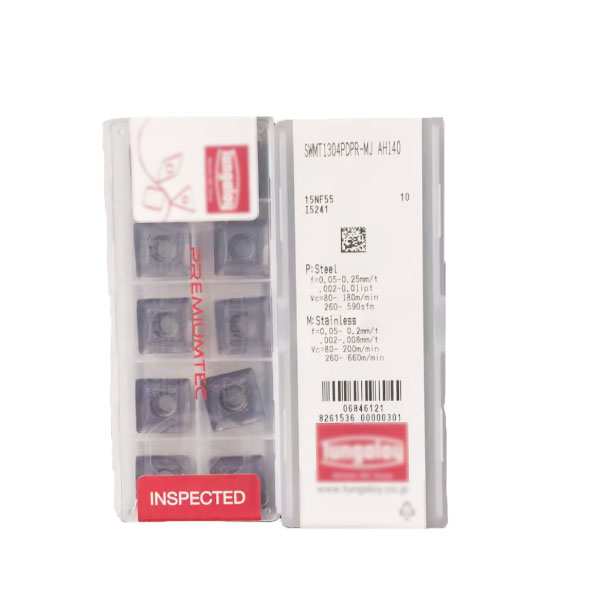

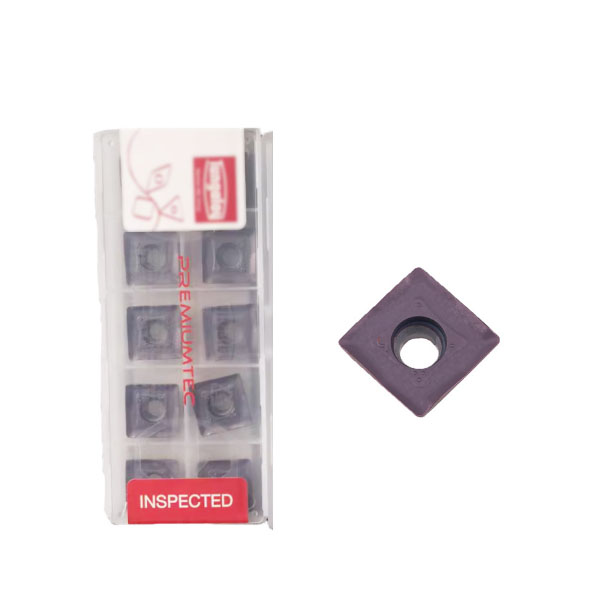

Detailed Photo



Packaging & Shipping

Packaging:
Packaging:10 pcs/plastic box, then by carton;
1.Wrap each product with foam
2.Put the product into the carton
3 .Seal the outer packing with tape

Shipping:
Shipping method: by air or by sea. We have a long-term cooperation with DHL,Fedex and UPS logistics company,and often get special discount about the freight charge.
Delivery time:Short;
Price terms:EXW, FOB, CFR, CIF.
Payment terms: T/T, Paypal, Escrow, L/C, Western Union.

FAQ

FAQ:
1.Why customers choose us ?
We can supply products with very high efficiency and very competitive prices.
There are some qty in stock.
There are many famous brands we are selling.
2.If our products are original imported ?
Yes.We promise our products are 100% original.
3. Do you provide after-sales service?
Yes. So if you find any problems after using our cutting tools, please feel free to tell us and we will help you solve it as soon as possible. Any feedback you have about the product is our way to improve.
4. How can I pay for my purchase?
T/T, Paypal, Escrow, L/C, Western Union.
5. How long is our order delivery time?
Almost most of the goods can be shipped within a week.
