Walters Snmg120408-RM5 Wsm30s Carbide Turning Inserts for alloy and High-Hardness Steel

Specifications:Snmg120408-RM5 Wsm30s

Paihao:Wsm30s

Keywords:High-Hardness Steel inserts,walter inserts,turning inserts,carbide inserts,wsm30s inserts

Core Domains: Superalloys (Nickel-based/Titanium-based), High-Hardness Steel (≥45 HRC), Super Duplex Stainless Steels Typical Applications: Aerospace turbine discs, Petroleum valves, Nuclear power pressure-containing components

Inquiry

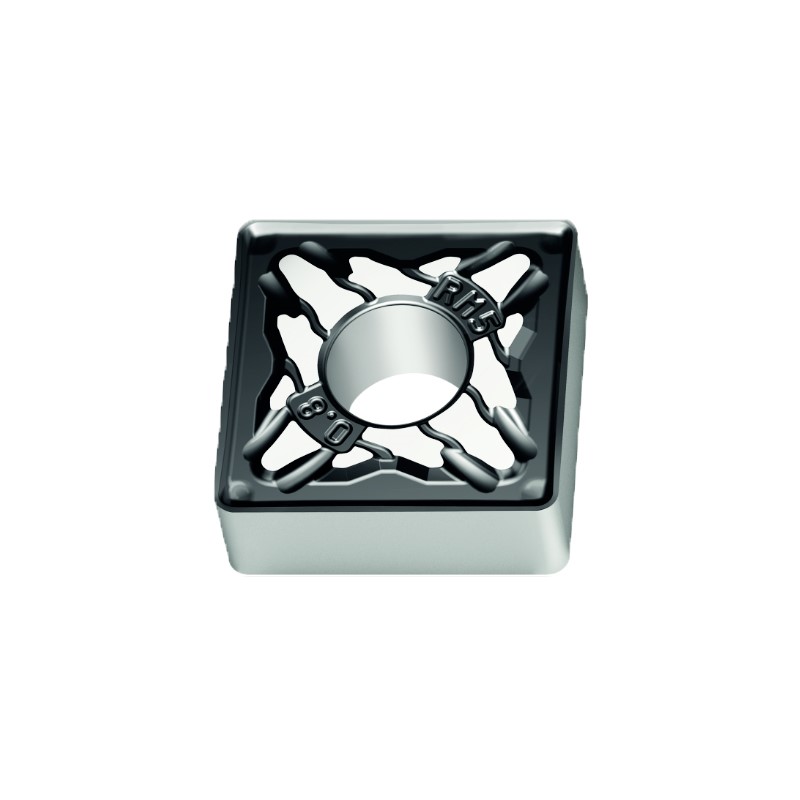

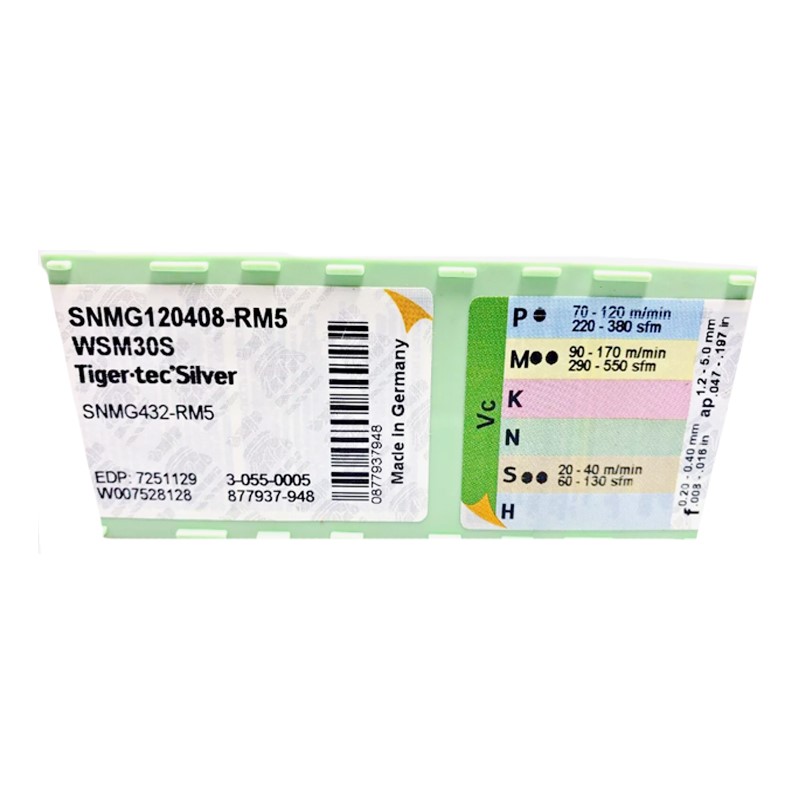

Walters SNMG120408-RM5 WSM30S Carbide Turning Inserts
Product Description

Specifications Details

DescriptionValue
Technical product number7251129
Identifying order numberSNMG120408-RM5 WSM30S
Identifying order number, inch alternativeSNMG432-RM5 WSM30S
Company codeW - Walters
Standard number of properties layoutDIN4000-76
Tool style code2
Insert included angle90 Degree
Clearance angle major0 Degree
Cutting edge length12.7 mm
Inscribed circle diameter12.7 mm
Insert thickness4.762 mm
Corner radius0.8 mm
Weight of item0.009 kg
Cutting edge condition codeE - Rounded
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationRM5
Insert handN - Neutral
Insert index count4
Tolerance class insertM
Insert thickness total4.762 mm
Insert mounting style code2 - With cylindrical bore
Fixing hole diameter5.16 mm
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationWSM30S
CoatingTiAlN+Al2O3+(Al)
Tipped cutting edge codeS
ISO property1
Standard designationSNMG120408
Standard designation ANSISNMG432
Master insert identificationSNMG120408 WSM30S
