Zcc Square U-Drill Inserts Spgt07t308-Pm Ybg205

Specifications:SPGT07T308-PM YBG205

Paihao:YBG205

Keywords:U-Drill Inserts,Drill Inserts,Inserts ,Square Inserts,Spgt07 Inserts,Pm Ybg205 Inserts,Zcc Inserts

If you want to find the best balance between cost and efficiency, choose ZCCC brand. If you are looking for genuine, complete ZCCC brand products, please choose us.

Inquiry

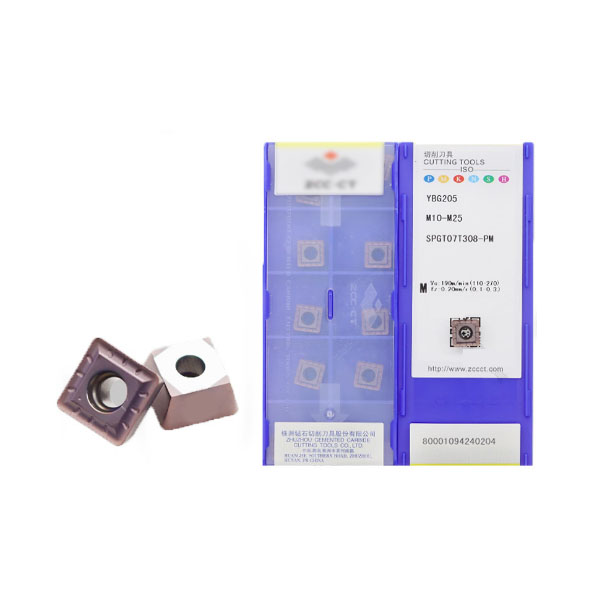

Square U-drill inserts SPGT07T308-PM YBG205

Product Description

Specifications Details
YBG205 Fine and semi-fine milling of stainless steel.

DescriptionValue
Identifying order numberSPGT07T308-PM YBG205
Company codeZCC - ZCC Cutting Tools
Standard number of properties layoutDIN4000-76
Tool style code2
Insert included angle90 Degree
Clearance angle major11 Degree
Cutting edge length7.94 mm
Inscribed circle diameter7.94 mm
Insert thickness3.97 mm
Corner radius0.8 mm
Insert handN - Neutral
Tolerance class insertG
Insert thickness total3.97 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40°to 60°
Fixing hole diameter2.8 mm
Standard designation of the grade, main applicationM20-M40
Standard designation of the grade, 2nd applicationS05-S30
Grade manufacturer's designationYBG205
CoatingTiAlN
ISO property0

If you want to find the best balance between cost and efficiency, choose ZCCC brand. If you are looking for genuine, complete ZCCC brand products, please choose us.
Main Products:

Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

Main Famous brand:
 Material Grades List:

NO.

Material

YBC151

High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.

YBC152

Thick TiCN and Al2O3 coating

YBC251

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBC252

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBC351

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBG102

Nc-TiAN coating and fine-grained matrix.

YBG202

Nc-TiAN coating and fine-grained matrix.

YBG205

Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection
for the cutting edge.

YBG302

Nc-TiAN coating and flexible cemented carbide matrix.

YBM151

Special organizational structure and TiCN, thin Al2O3 and TiN coating.

YBM251

Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.

YBM253

With the advance extra fine grain nanometer coating technology, match up with the
high toughness gradient matrix.

YBD052

CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.

YBD102

CVD coating (thick Al2O3 & thick TiCN) , hard matrix.

YBD152

CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.

YBD252

CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.

YNG151

Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase
structure, Strengthen bond phase,grain boundary composition design.

YNG151C

Physics weather deposit (PVD) coating, high toughness ceramal matrix.

YD101

Fine particle hardness phase WC and bond phase Co.

YD201

Middle particle hardness phase WC and bond phase Co.

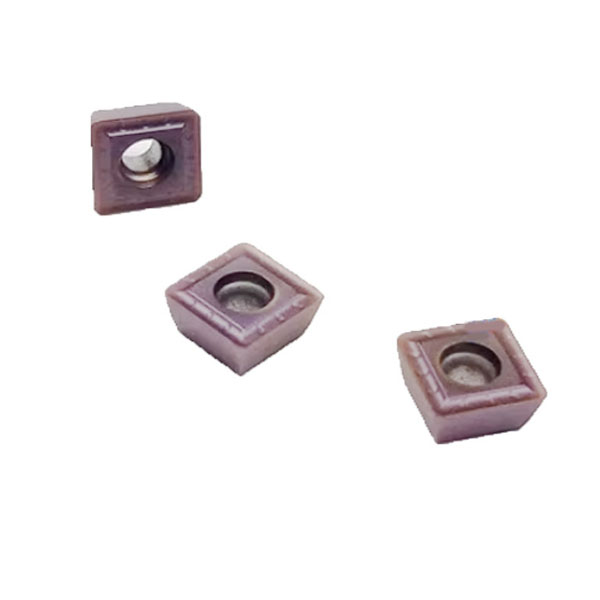

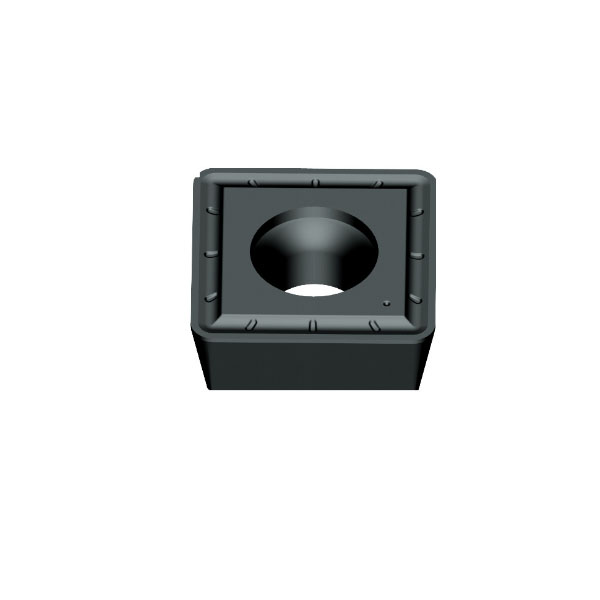

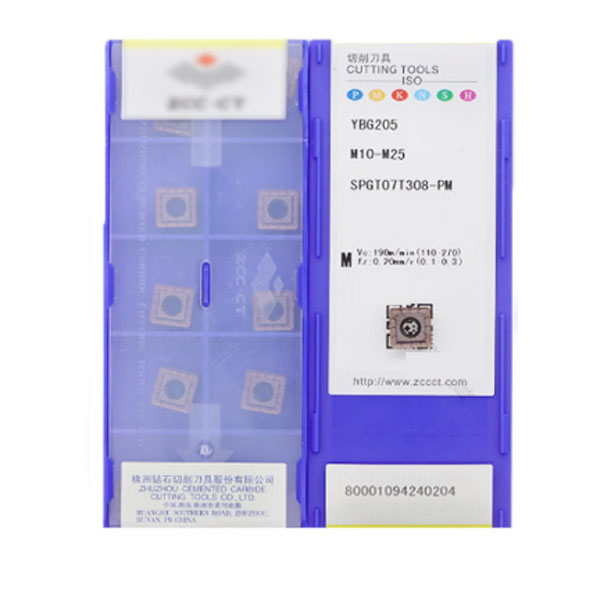

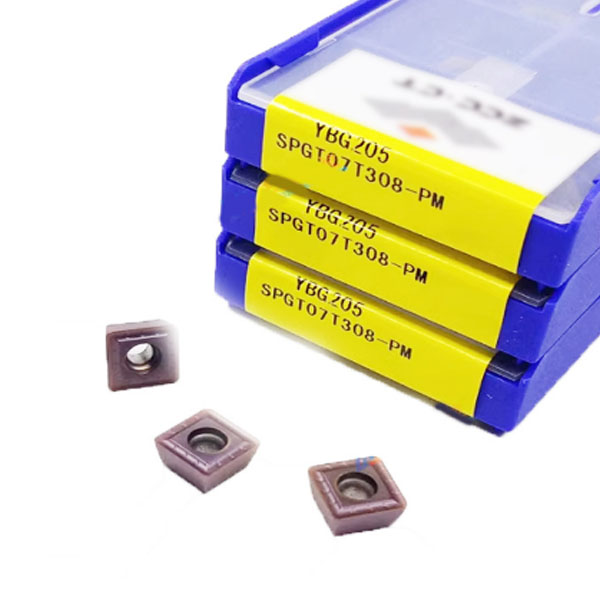

Detailed Photos
