Walters Scmt120412-Pm5 Wpp20 Turning Indexable Inserts

Specifications:Scmt120412-Pm5 Wpp20

Paihao:Wpp20

Keywords:Walter Inserts,Turning Inserts,Indexable Inserts,Scmt120412-Pm5 Wpp20,Scmt Inserts,Scmt120412 Inserts,Wpp20 Inserts

Applicable Scenarios: Materials: Steel (P-class), Stainless Steel (M-class), Cast Iron (K-class) Processing Types: Finish milling (recommended depth of cut: 0.1-0.5 mm), Semi-finish milling Advantages: Heptagonal double-sided design (14 cutting edges) with high cost-effectiveness; Wiper edge improves surface quality.

Inquiry

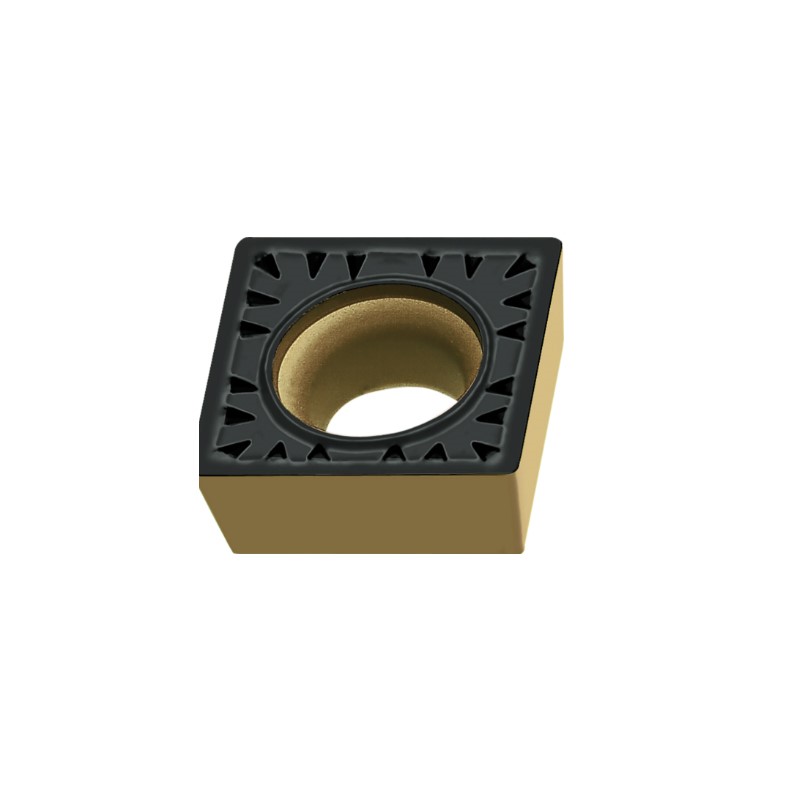

SCMT120412-PM5 WPP20 Turning Indexable Inserts
Product Description

Specifications Details

DescriptionValue
Technical product number5199709
Identifying order numberSCMT120412-PM5 WPP20
Identifying order number, inch alternativeSCMT433-PM5 WPP20
Company codeW - Walter
Standard number of properties layoutDIN4000-76
Tool style code2
Insert included angle90 Degree
Clearance angle major7 Degree
Cutting edge length12.7 mm
Inscribed circle diameter12.7 mm
Insert thickness4.7625 mm
Corner radius1.2 mm
Weight of item0.007 kg
Chip breaker face count1 - With chip breaker one-side
Chip breaker manufacturers designationPM5
Insert handN - Neutral
Insert index count4
Tolerance class insertM
Insert thickness total4.7625 mm
Insert mounting style code3 - Counter bore for screws with taper angle from 40°to 60°
Fixing hole diameter5.5 mm
Coolant supply property0 - Without coolant supply
Grade manufacturer's designationWPP20
CoatingTiCN+Al2O3+(TiN)
Tipped cutting edge codeS
ISO property1
Standard designationSCMT120412
Standard designation ANSISCMT433
Master insert identificationSCMT120412 WPP20
Main Products
Cutting ToolsMeasuring Tools
Carbide InsertVernier Caliper
Tool HolderDigital Caliper
Boring BarDial Indicator
End MillsDigital Indicator
ReamersComparator
Collet ChuckTool Adjusters
Drill BitCaliper Gauges
Milling CutterGauge Blocks
Hand TapsGauges
Machine TapsMicrometer

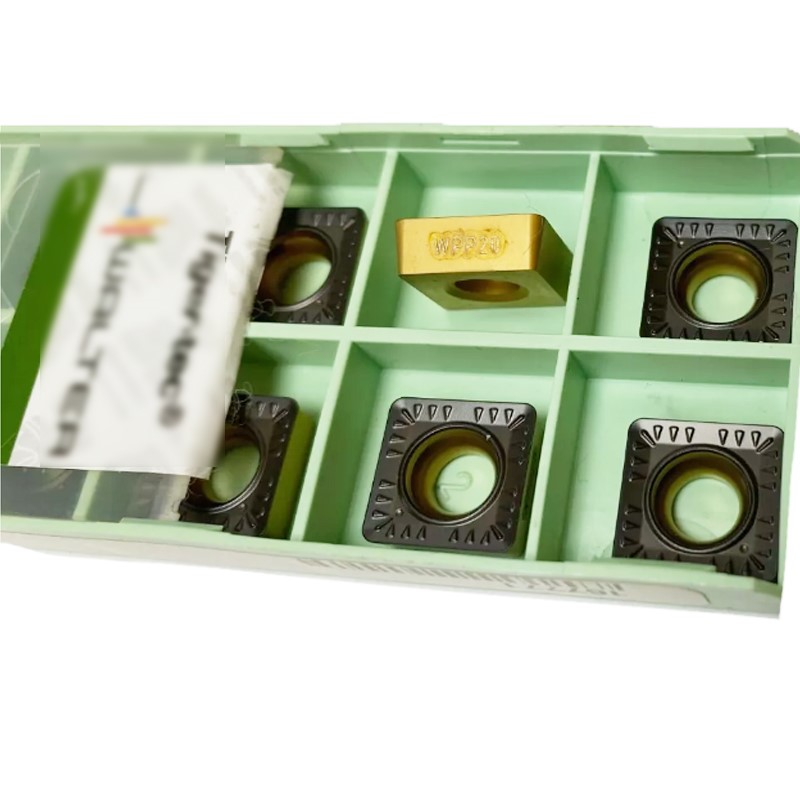

Detailed Photos

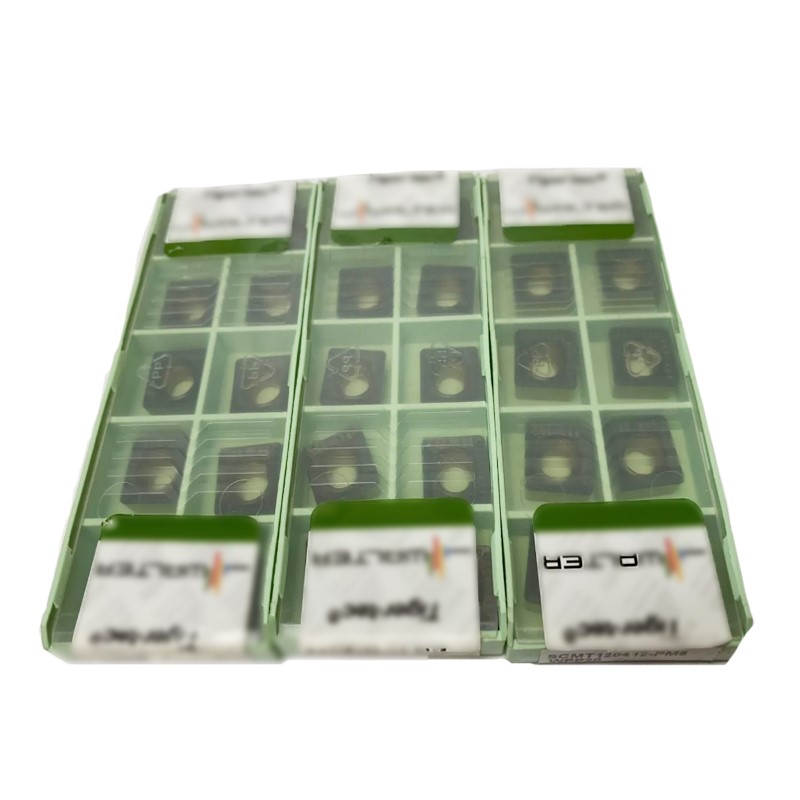

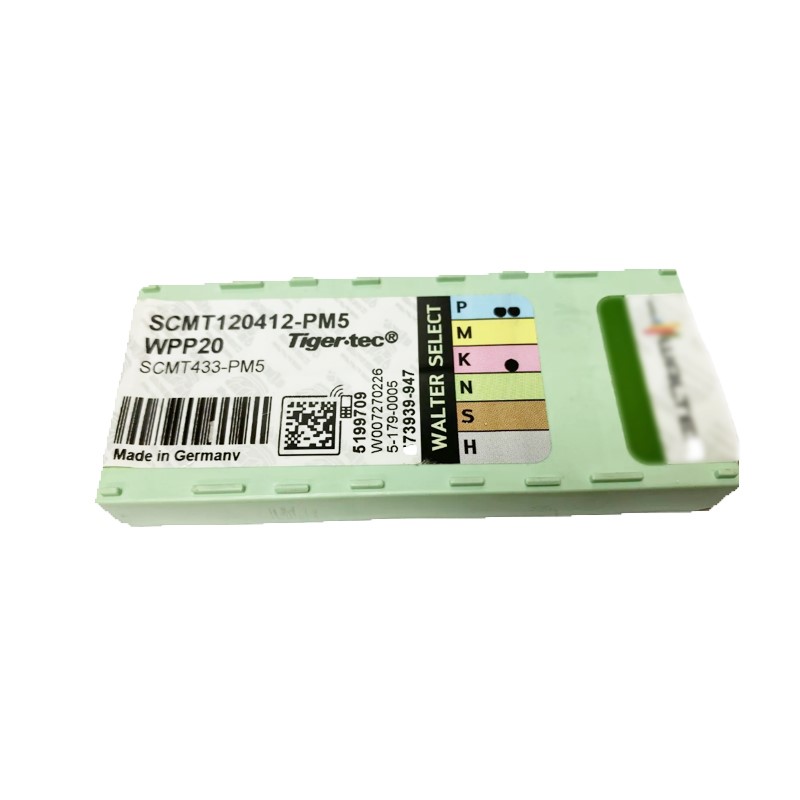

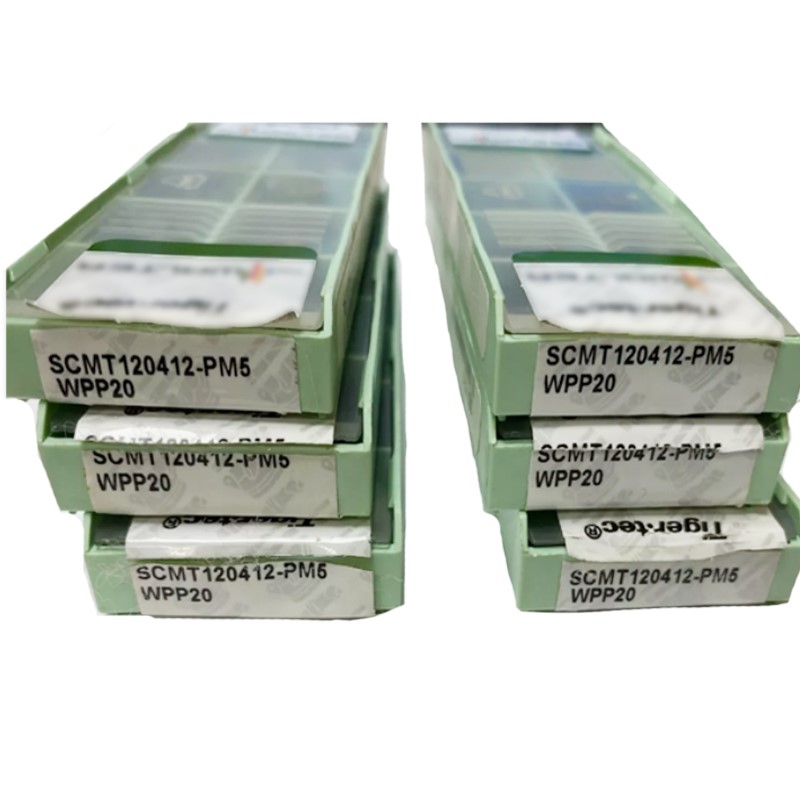

Detailed Photo


Company Profile

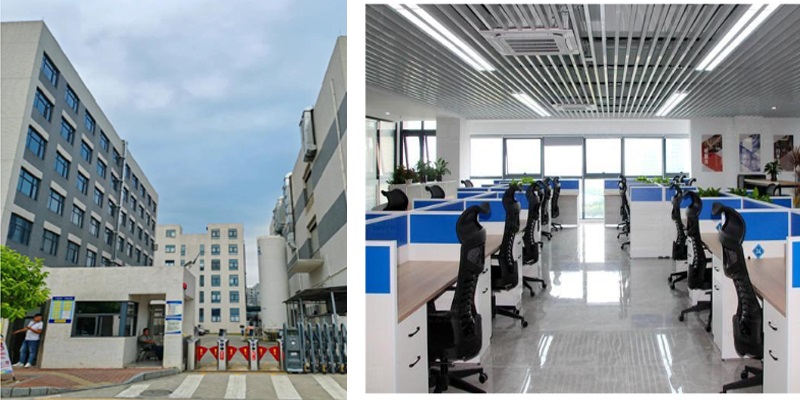

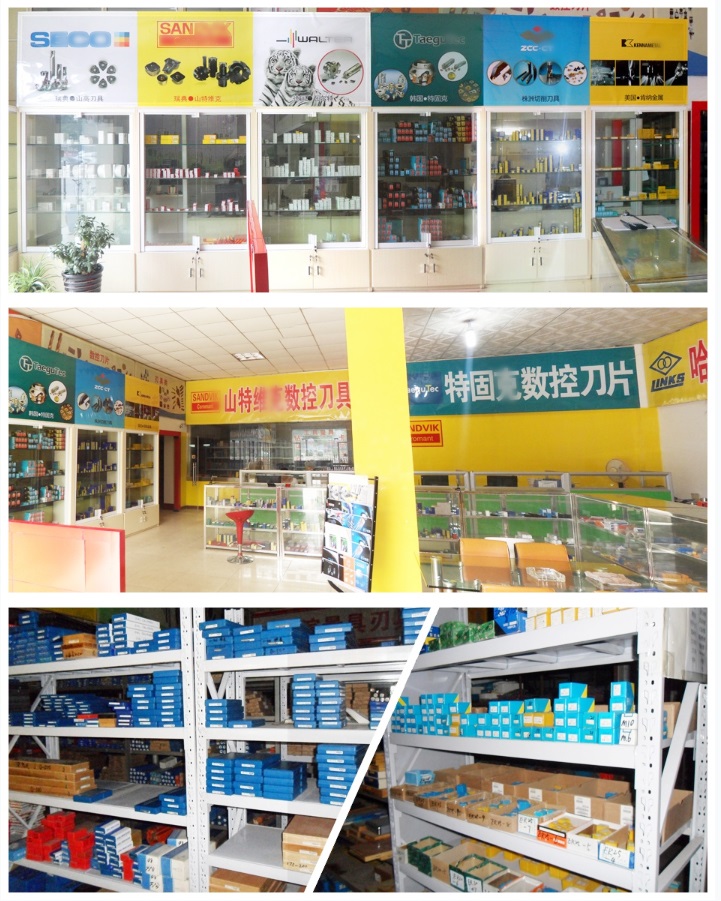

Company Profile
